Brake Caliper Anchor Plate

Brake Caliper Anchor Plate

Removal and Installation









1. Remove the brake pads. For additional information, refer to Brake Pads Front Disc Brake.

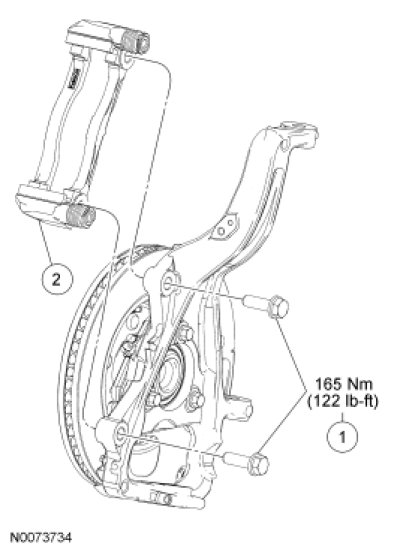

2. Remove and discard the 2 brake caliper anchor plate bolts and remove the brake caliper anchor plate.
- To install, tighten to 165 Nm (122 lb-ft).

3. To install, reverse the removal procedure.
