Brake Pedal Motor

Brake Pedal Motor

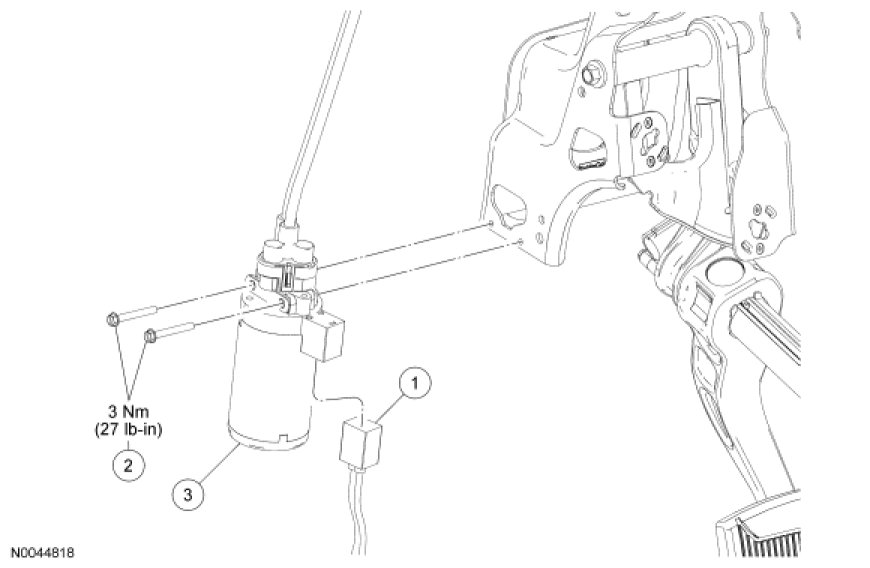

Removal and Installation

1. Disconnect the accelerator and brake pedal drive cables from the adjustable pedal motor.

2. Disconnect the adjustable pedal motor electrical connector.

3. Remove the 2 adjustable pedal motor screws and then remove the adjustable pedal motor and drive cables as an assembly.
- To install, tighten to 3 Nm (27 lb-in).

4. NOTE: Make sure the brake pedal and the accelerator pedal are in the same position before connecting the drive cable to the adjustable pedals.

To install, reverse the removal procedure.
