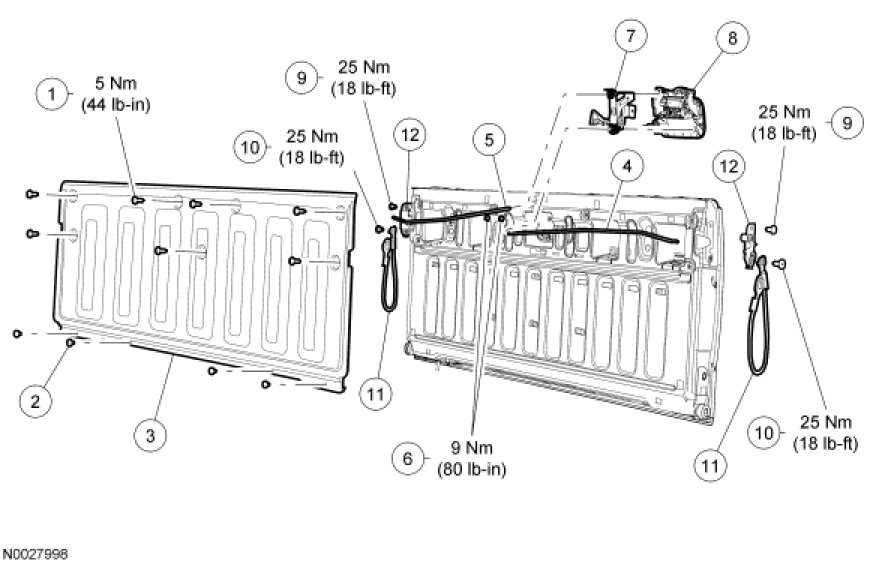

Tailgate Handle, Lock and Latches - Exploded View




Tailgate Handle, Lock and Latches - Exploded View
