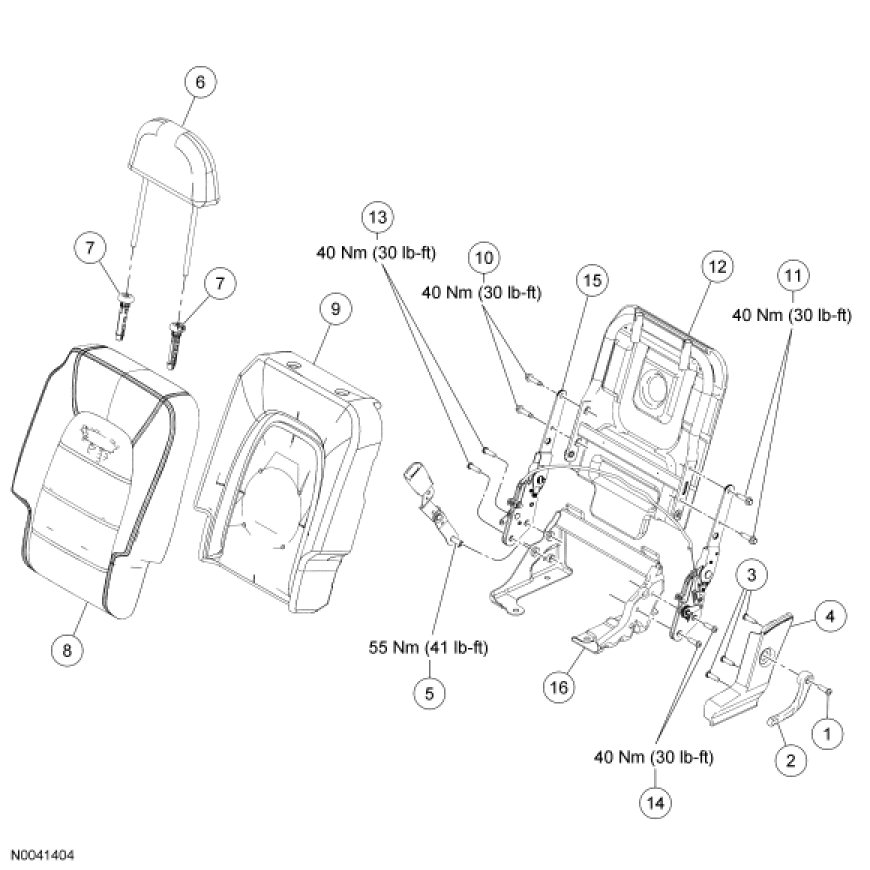

Seat - Exploded View, Second Row

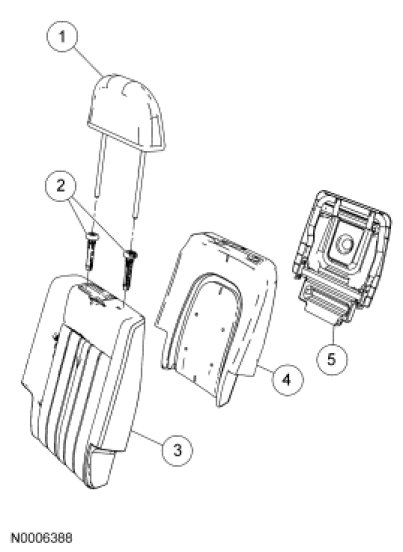

Seat - Exploded View, Second Row

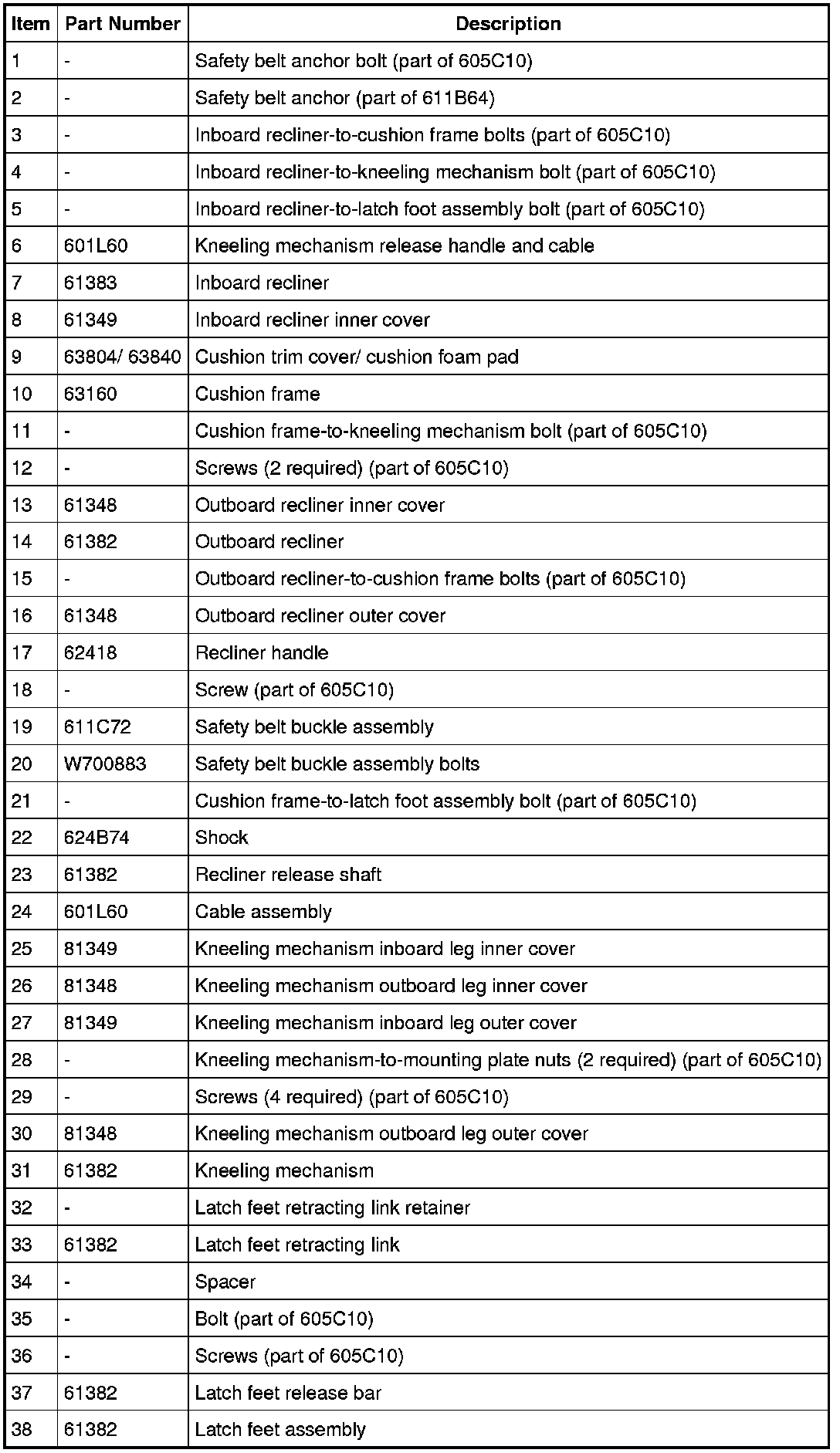

60 Percent E-Z Entry Backrest

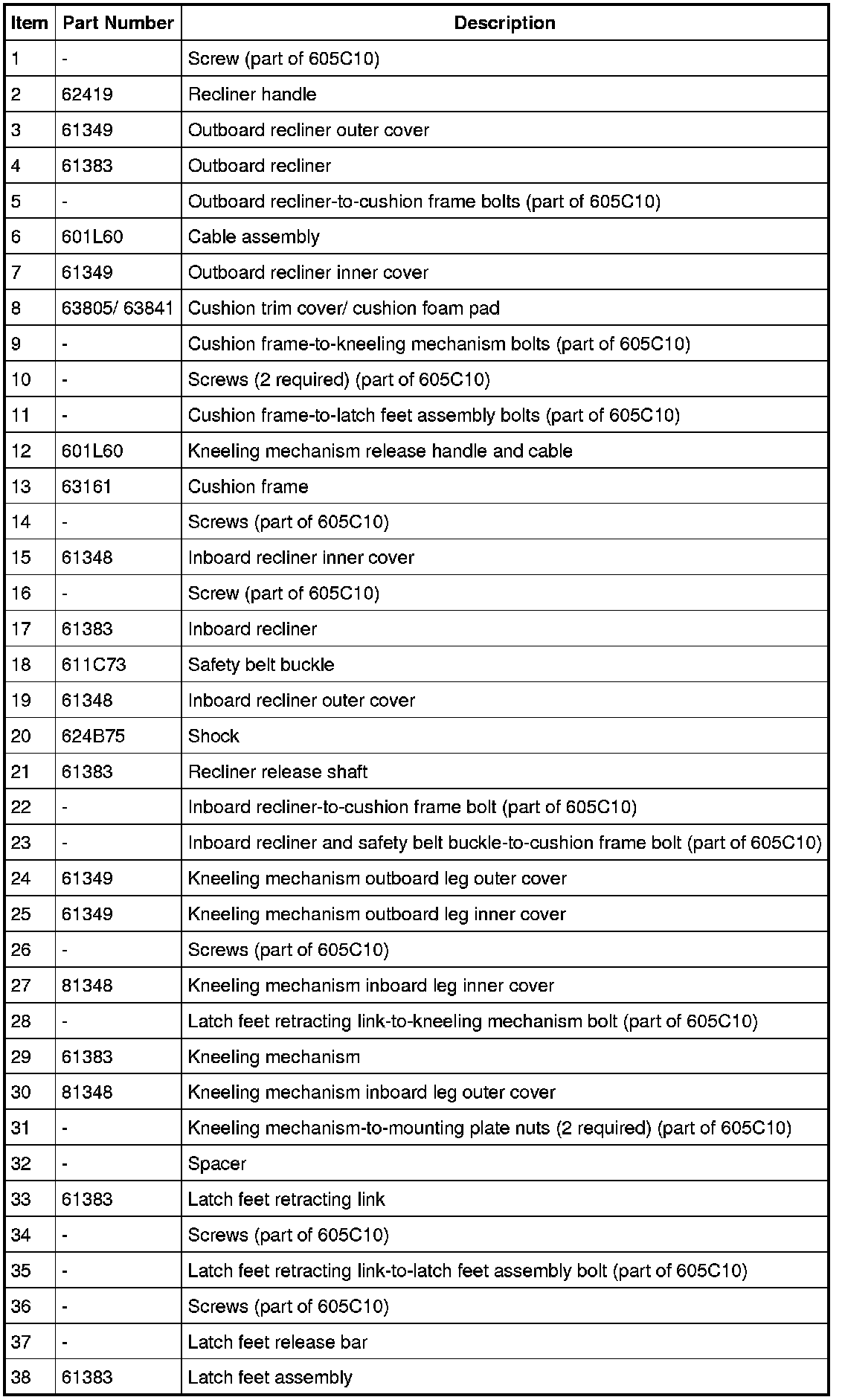

60 Percent, E-Z Entry Cushion

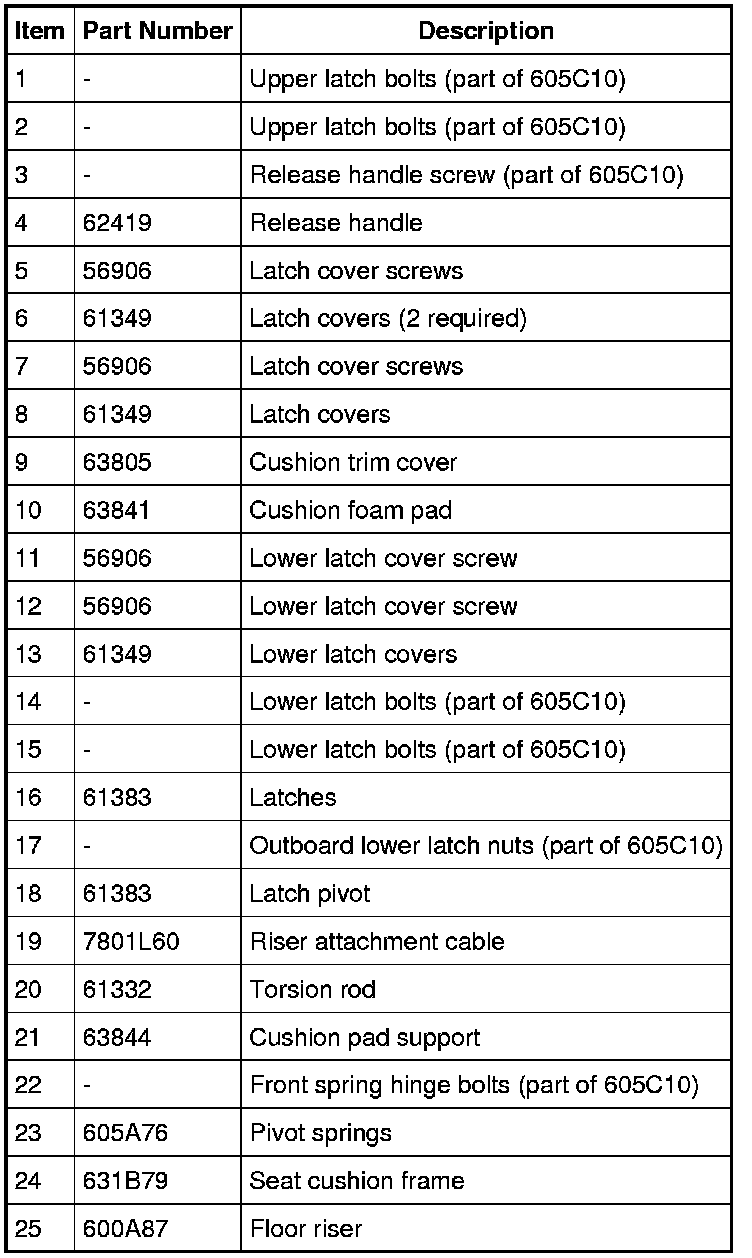

40 Percent E-Z Entry Backrest









40 Percent, E-Z Entry Cushion













Bucket, Backrest









Bucket, Cushion

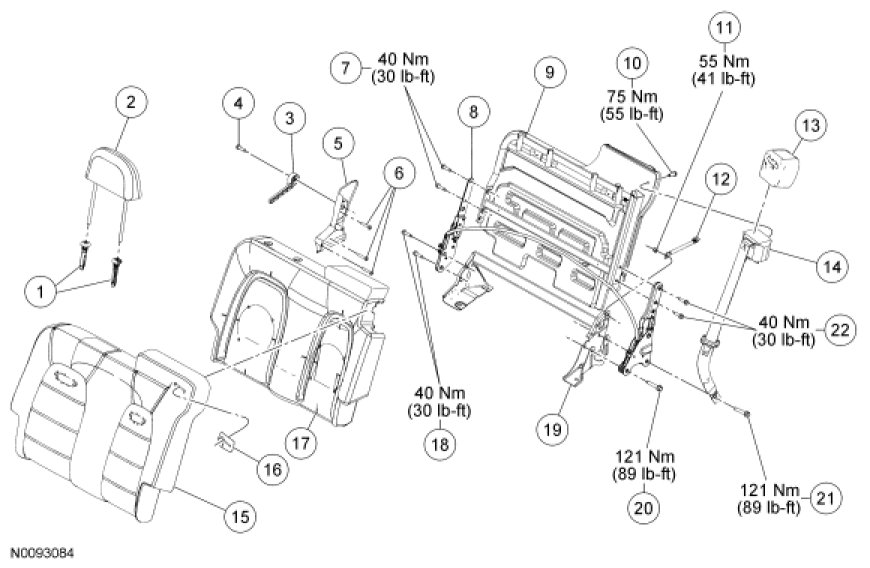

Explorer/Mountaineer, 60 Percent Bench, Backrest

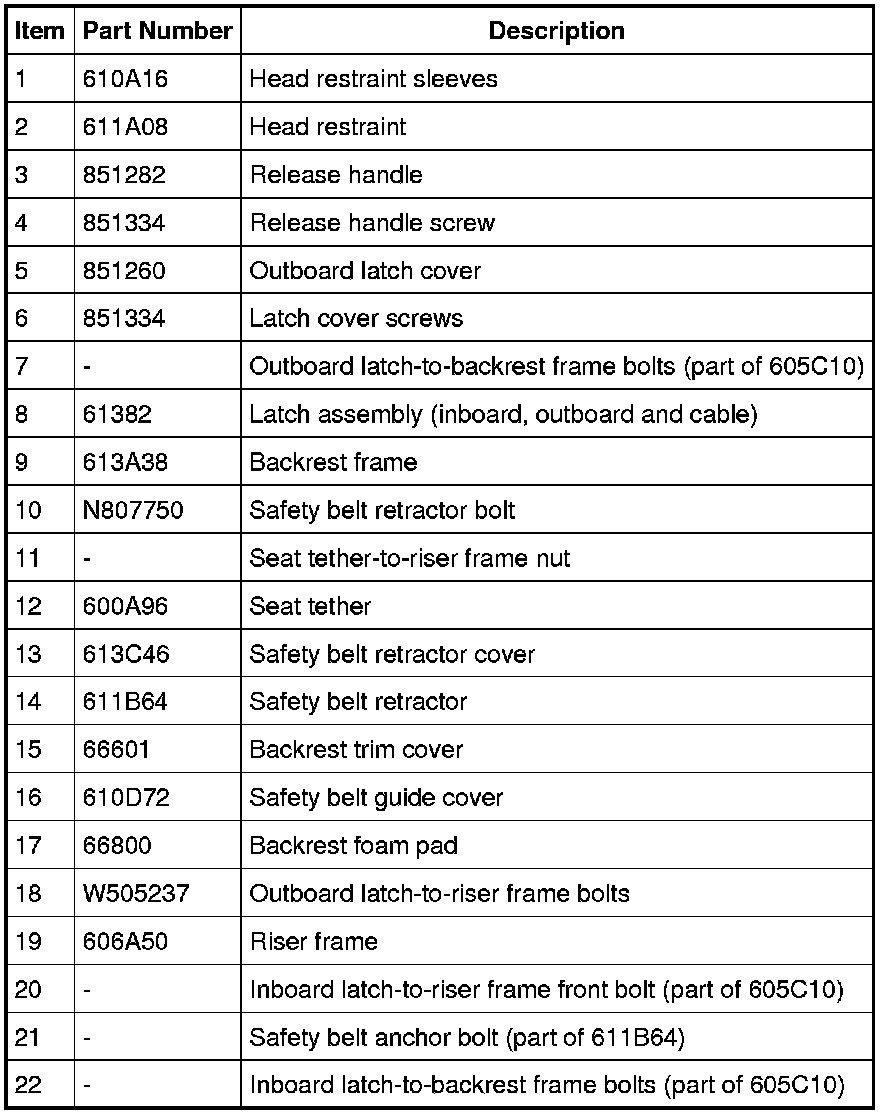

Explorer Sport Trac, 60 Percent Bench, Backrest









Second Row, 60 Percent Bench, Cushion

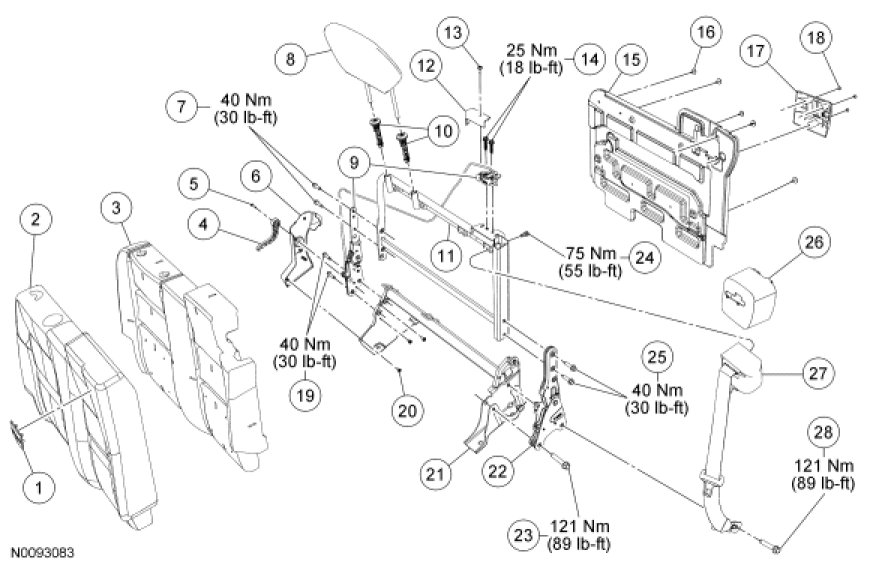

Second Row, 40 Percent Bench, Backrest

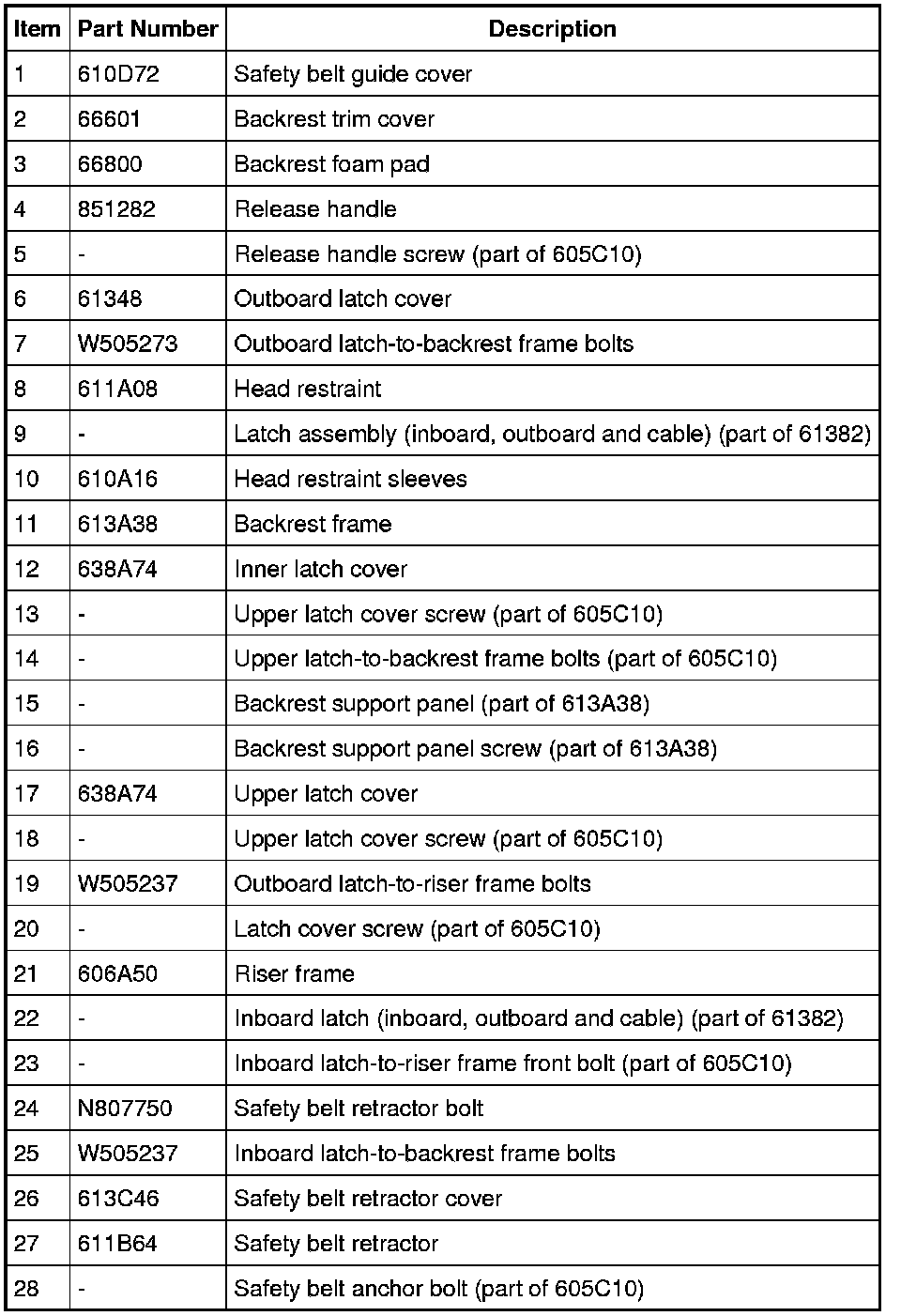

Second Row, 40 Percent Bench, Cushion
