D-Pillar Trim Panel

D-Pillar Trim Panel

Removal and Installation

Vehicles with third row seating

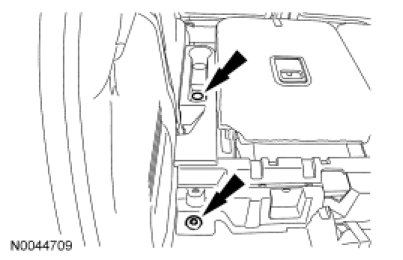

1. Remove the rear cargo management system.
- Remove the screw.

- Remove the pushpin.

- Remove the system.





2. Remove the D-pillar lower safety belt anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

All vehicles

3. Position the liftgate opening weatherstrip aside.

4. Remove the rear upper headliner trim panel.





5. Remove the D-pillar trim panel.

6. To install, reverse the removal procedure.
