Antenna Lead-In Cable

Antenna Lead-In Cable









Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) Audio Control Module (ACM).

2. Lower the glove compartment door.

3. NOTE: Release the pin-type retainers.

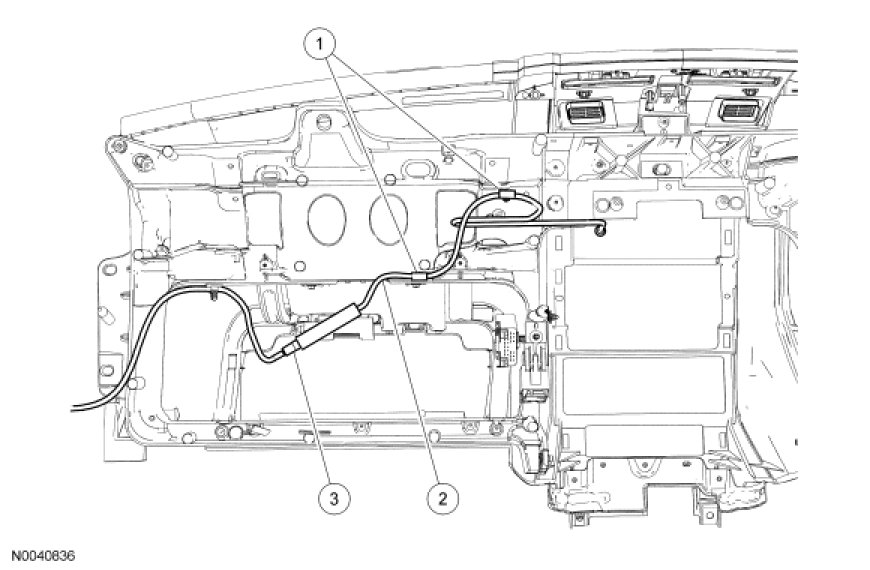

Disconnect the antenna lead-in cable connection and remove the antenna lead-in cable.

4. To install, reverse the removal procedure.
