A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0506
P0506

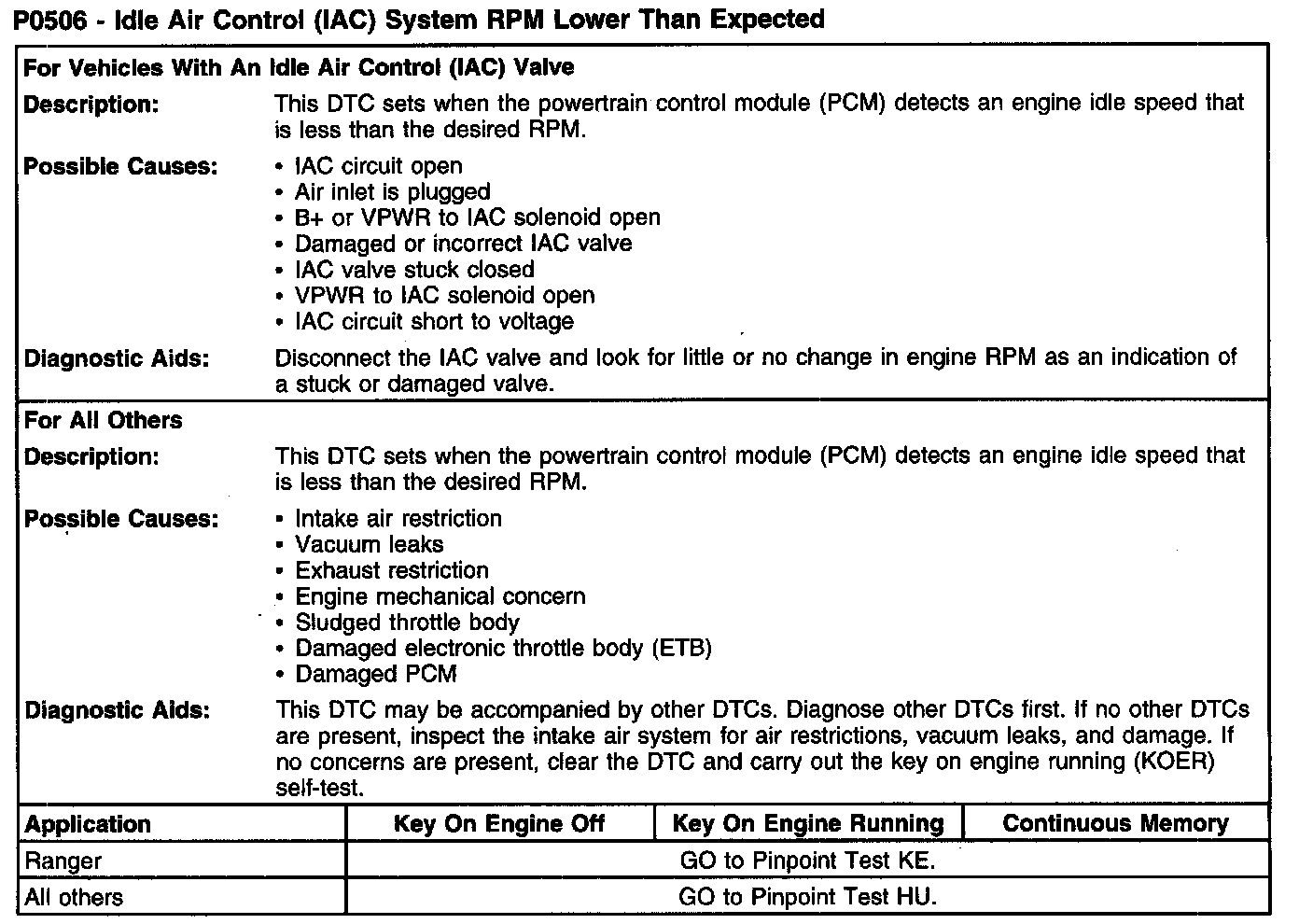

P0506 - Idle Air Control (IAC) System RPM Lower Than Expected:
