Restraints Control Module (RCM) DTC Chart

Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)

DTC Charts

The DTCs can be retrieved from the RCM and the OCSM with a scan tool via the DLC.

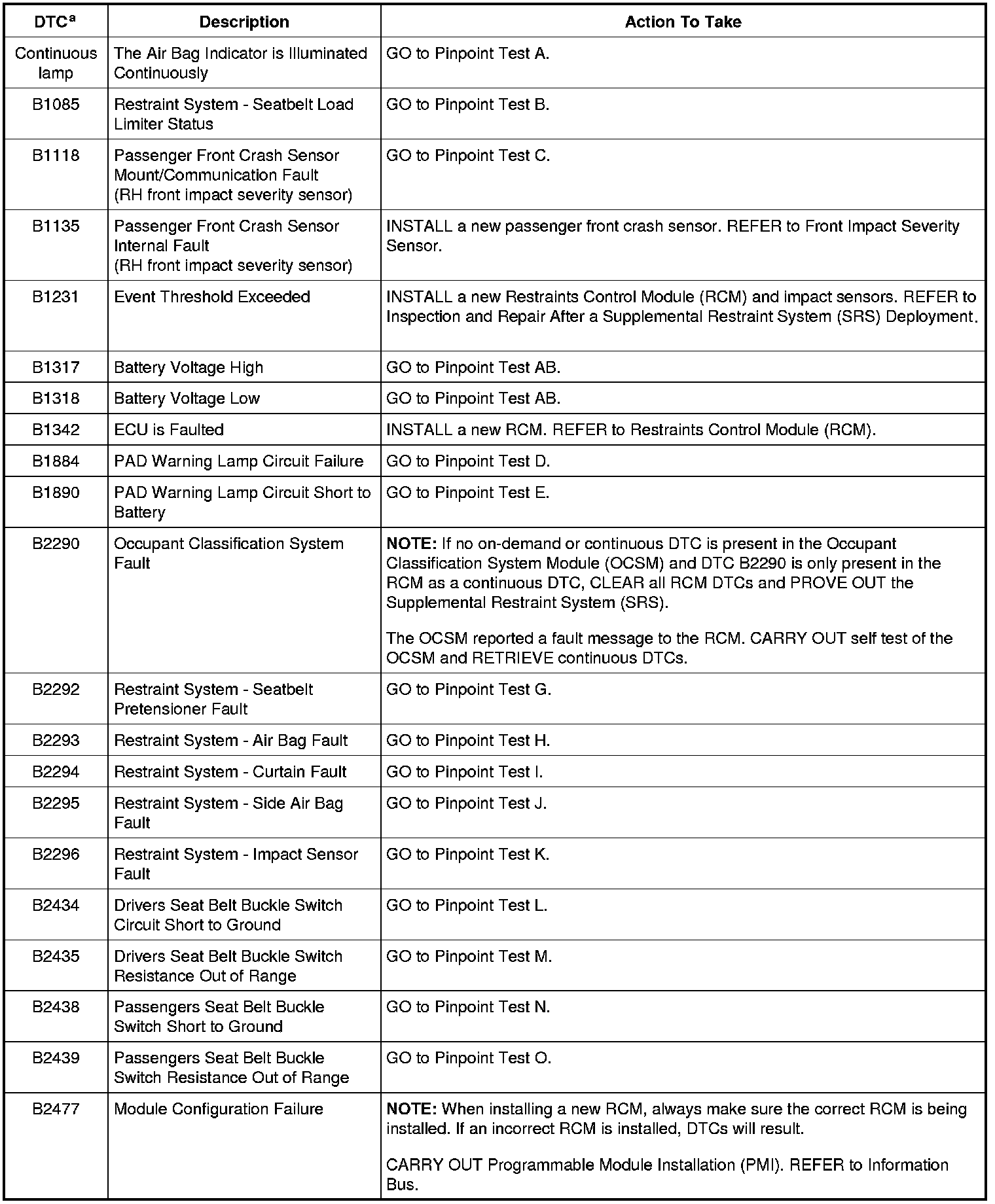

Restraints Control Module (RCM) DTC Chart






a DTC: Retrieved using scan tool.
