Parking Brake Control: Notes

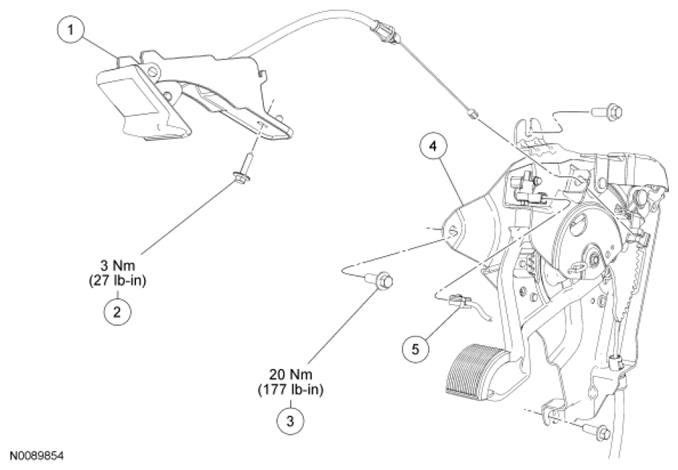

Fig 1: Parking Brake Control Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	2783	Parking brake release handle
2	W707628	Parking brake release handle bolt
3	W704522	Parking brake control assembly bolt (3 required)
4	2780	Parking brake control
5	-	Parking brake switch electrical connector (part of 14489)
