Pinpoint Test F: The Individual Component Illumination Is Inoperative

NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
  1. F1 CHECK THE VOLTAGE TO THE SINGLE ILLUMINATION SOURCE
    NOTE: If the headlamp switch is the inoperative source, unplug the headlamp switch connector to measure the illumination circuit voltage. Unplugging the connector causes the SJB  to turn the exterior lights on by default for 10 minutes, so it is unnecessary to turn the headlamp switch on.
    • Ignition OFF.
    • Disconnect: Inoperative Illumination Source.
    • Ignition ON.
    • With the parking lamps on, rotate the instrument panel dimmer switch to the full illumination position.
    • Measure the voltage between the inoperative illumination source, harness side and ground as follows:
      CONNECTOR-PIN REFERENCE

      Component Connector-Pin Circuit
      Floor shifter C3245-3 VLN04 (VT/GY)
      Message center switch C253-1 VLN04 (VT/GY)
      Headlamp switch C205-5 VLN04 (VT/GY)
      Liftgate release switch C2269-3 VLN04 (VT/GY)
      Ambient lighting switch C3348-3 VLN04 (VT/GY)
      Hazard/passenger air bag disable/traction control switch C2355-6 VLN04 (VT/GY)
      LH door lock control switch C505-2 CBP41 (BU)
      RH door lock control switch C605-2 CBP41 (BU)
      Manual climate control C2357a-4 VLN04 (VT/GY)

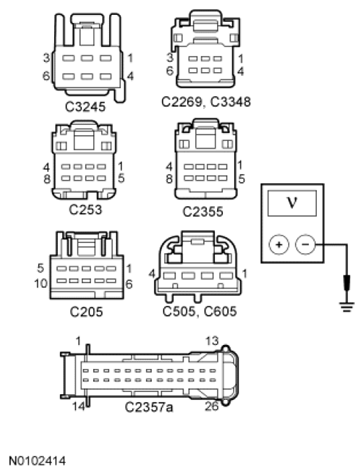

      Fig 1: Measuring Voltage Between Inoperative Illumination Source, Harness Side And Ground (Edge)
      G06505506Courtesy of FORD MOTOR CO.
      CONNECTOR-PIN REFERENCE

      Component Connector-Pin Circuit
      Floor shifter C3245-3 VLN37 (BU/WH)
      Memory set switch C503-3 VLN37 (BU/WH)
      Roof opening panel switch C912-8 VLN37 (BU/WH)
      Headlamp switch C205-5 VLN37 (BU/WH)
      Message center switch C253-1 VLN37 (BU/WH)
      Hazard/passenger air bag disable/traction control switch C2355-6 VLN37 (BU/WH)
      Liftgate release switch C2269-3 VLN37 (BU/WH)
      Ambient lighting switch C3348-3 VLN04 (VT/GY)

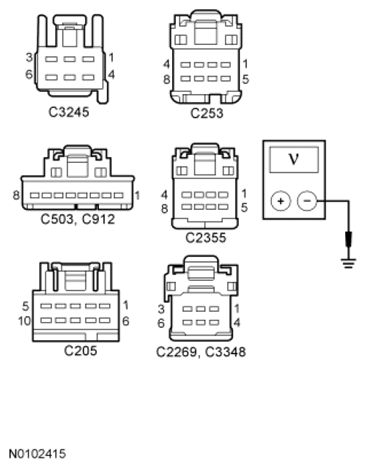

      Fig 2: Measuring Voltage Between Inoperative Illumination Source, Harness Side And Ground (MKX)
      G06505507Courtesy of FORD MOTOR CO.
      CONNECTOR-PIN REFERENCE

      Component Connector-Pin Circuit
      LH rear heated seat switch C722-5 VLN37 (BU/WH)
      RH rear heated seat switch C822-5 VLN37 (BU/WH)
      LH front window control switch C535a-6 VLN37 (BU/WH)
      RH front window control switch C648-1 VLN37 (BU/WH)
      LH rear window control switch C701-4 VLN37 (BU/WH)
      RH rear window control switch C801-4 VLN37 (BU/WH)
      LH door lock control switch C505-2 VLN37 (BU/WH)
      RH door lock control switch C605-2 VLN37 (BU/WH)

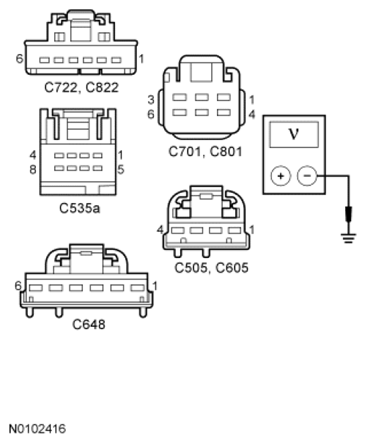

      Fig 3: Measuring Voltage Between Inoperative Illumination Source, Harness Side And Ground (MKX)
      G06505508Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes:  For an Edge/MKX door lock control switch or an MKX passenger window control switch, INSTALL a new switch in question. REFER to Door Lock Control Switch in HANDLES, LOCKS, LATCHES AND ENTRY SYSTEMS or Window Control Switch in GLASS, FRAMES AND MECHANISMS .

      For all other components, GO to F2  .

    • No:  REPAIR the voltage supply circuit in question for an open. TEST the system for normal operation.
  2. F2 CHECK THE VOLTAGE TO THE SINGLE ILLUMINATION SOURCE USING THE CONNECTOR GROUND
    • Measure the voltage between the inoperative illumination source connector, harness side as follows:
      CONNECTOR-PIN REFERENCE

      Component Connector-Pin/Circuit Connector-Pin/Circuit
      Floor shifter C3245-3 C3245-4
      VLN04 (VT/GY) GD140 (BK/GN)
      Headlamp switch C205-5 C205-10
      VLN04 (VT/GY) GD116 (BK/VT)
      Message center switch C253-1 C253-4
      VLN04 (VT/GY) GD116 (BK/VT)
      Hazard/passenger air bag disable/traction control switch C2355-6 C2355-1
      VLN04 (VT/GY) GD116 (BK/VT)
      Liftgate release switch C2269-3 C2269-2
      VLN04 (VT/GY) GD116 (BK/VT)
      Ambient lighting switch C3348-3 C3348-4
      VLN04 (VT/GY) GD908 (BK)
      Manual climate control C2357a-4 C2357a-23
      VLN04 (VT/GY) GD115 (BK/GY)

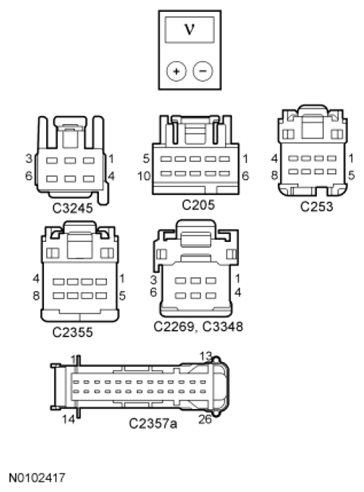

      Fig 4: Measuring Voltage Between Inoperative Illumination Source Connector, Harness Side (Edge)
      G06505509Courtesy of FORD MOTOR CO.
      CONNECTOR-PIN REFERENCE

      Component Connector-Pin/Circuit Connector-Pin/Circuit
      Floor shifter C3245-3 C3245-4
      VLN37 (BU/WH) GD140 (BK/GN)
      Memory set switch C503-3 C503-7
      VLN37 (BU/WH) GD133 (BK)
      Roof opening panel switch C912-8 C912-2
      VLN37 (BU/WH) GD133 (BK)
      Headlamp switch C205-5 C205-10
      VLN37 (BU/WH) GD116 (BK/VT)
      Message center switch C253-1 C253-4
      VLN37 (BU/WH) GD116 (BK/VT)
      Hazard/passenger air bag disable/traction control switch C2355-6 C2355-1
      VLN37 (BU/WH) GD116 (BK/VT)
      Ambient lighting switch C3348-3 C3348-4
      VLN04 (VT/GY) GD908 (BK)

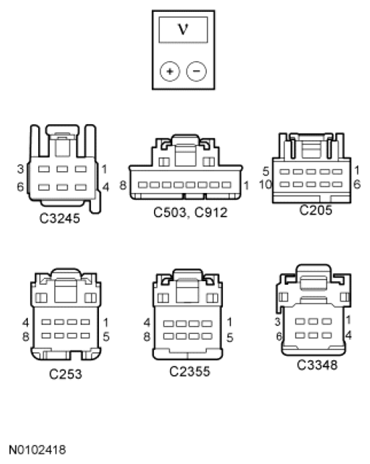

      Fig 5: Measuring Voltage Between Inoperative Illumination Source Connector, Harness Side (MKX)
      G06505510Courtesy of FORD MOTOR CO.
      CONNECTOR-PIN REFERENCE

      Component Connector-Pin/Circuit Connector-Pin/Circuit
      Liftgate release switch C2269-3 C2269-2
      VLN37 (BU/WH) GD116 (BK/VT)
      LH rear heated seat switch C722-5 C722-1
      VLN37 (BU/WH) GD126 (BK/WH)
      RH rear heated seat switch C822-5 C822-1
      VLN37 (BU/WH) GD145 (BK/BU)
      LH front window control switch C535a-6 C535b-6
      VLN37 (BU/WH) GD133 (BK)

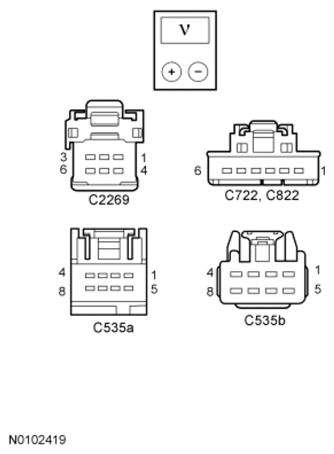

      Fig 6: Measuring Voltage Between Inoperative Illumination Source Connector, Harness Side (MKX)
      G06505511Courtesy of FORD MOTOR CO.
    • Is the voltage greater than 10 volts?
    • Yes:  INSTALL a new component in question. TEST the system for normal operation.
    • No:  REPAIR the circuit. TEST the system for normal operation.
