Valve Cover - LH: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |

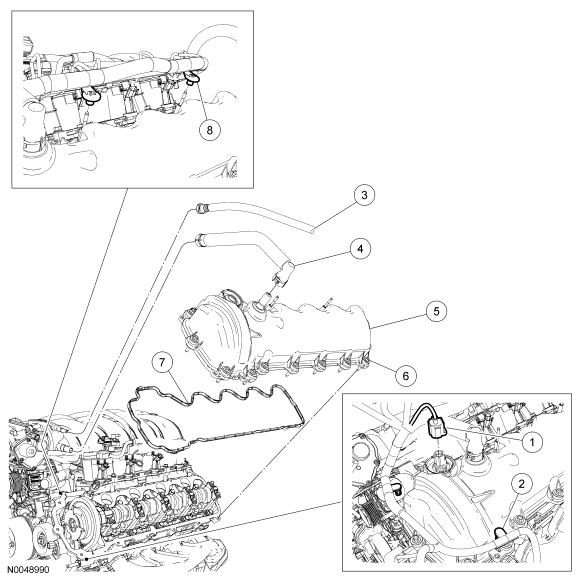

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | LH variable camshaft timing (VCT) solenoid electrical connector (part of 12B637) |
| 2 | - | Engine wiring harness retainer (2 required) (part of 12B637) |
| 3 | 9J274 | Evaporative emissions (EVAP) tube |
| 4 | 6K817 | PCV tube |
| 5 | 6A505 | LH valve cover |
| 6 | 6C519 | LH valve cover bolt (15 required) (part of 6A505) |
| 7 | 6584 | LH valve cover gasket |
| 8 | - | Engine wiring harness retainer (2 required) (part of 12B637) |
