Engine Front Cover: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	3-Jaw Puller	303-D121
Courtesy of FORD MOTOR CO.	Installer, Crankshaft Front Seal	303-335 (T88T-6701-A)
Courtesy of FORD MOTOR CO.	Installer, Crankshaft Front Seal	303-635
Courtesy of FORD MOTOR CO.	Installer, Crankshaft Vibration Damper	303-102 (T74P-6316-B)
Courtesy of FORD MOTOR CO.	Remover, Crankshaft Front Seal	303-107 (T74P-6700-A)

Material

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Silicone Gasket Remover ZC-30	-

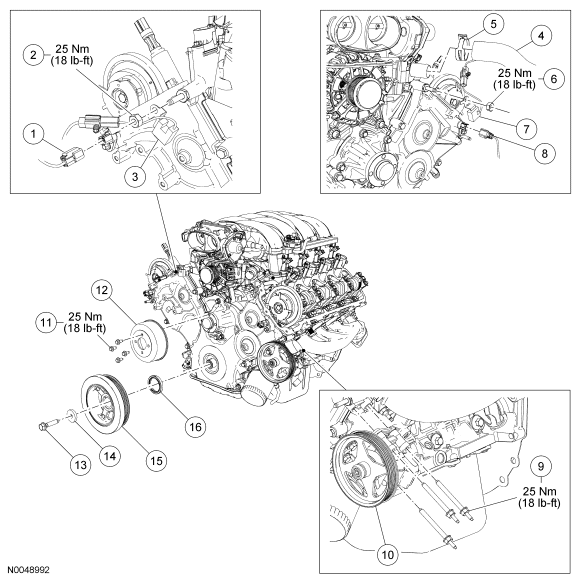

Fig 1: Engine Front Cover With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	RH camshaft position (CMP) sensor electrical connector (part of 12B637)
2	N804758	RH radio ignition interference capacitor nut
3	18801	RH radio ignition interference capacitor
4	8620	Upper coolant hose
5	15161	Hose clamp
6	N804758	LH radio ignition interference capacitor nut
7	18801	LH radio ignition interference capacitor
8	-	LH CMP sensor electrical connector (part of 12B637)
9	W705023	Power steering pump stud bolt (3 required)
10	3A696	Power steering pump
11	N806282	Coolant pump pulley bolts (4 required)
12	8A528	Coolant pump pulley
13	W701512	Crankshaft pulley bolt
14	N806165	Crankshaft pulley bolt washer
15	6316	Crankshaft pulley
16	6700	Crankshaft front oil seal

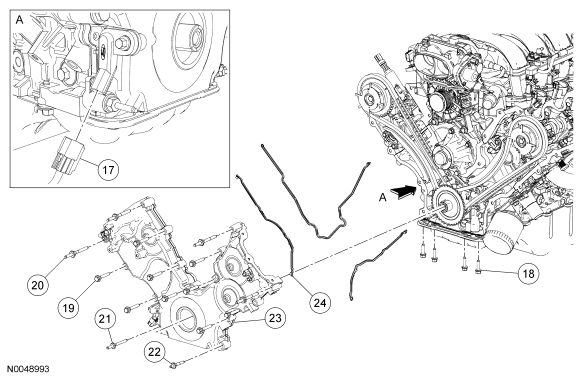

Fig 2: Identifying Engine Front Cover (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
17	-	Crankshaft position (CKP) sensor electrical connector (part of 12B637)
18	W701605	Oil pan bolt (4 required)
19	N806177	Engine front cover bolt (9 required)
20	N806300	Engine front cover stud (4 required)
21	N808586	Engine front cover stud bolt
22	W706508	Engine front cover stud bolt
23	6C086	Engine front cover
24	6D081	Engine front cover gasket (3 required)
