Cylinder Head: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Compressor, Valve Spring	303-1039
Courtesy of FORD MOTOR CO.	Installer, Valve Stem Oil Seal	303-383 (T91T-6571-A)

Material

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

NOTE: LH side shown, RH side similar.

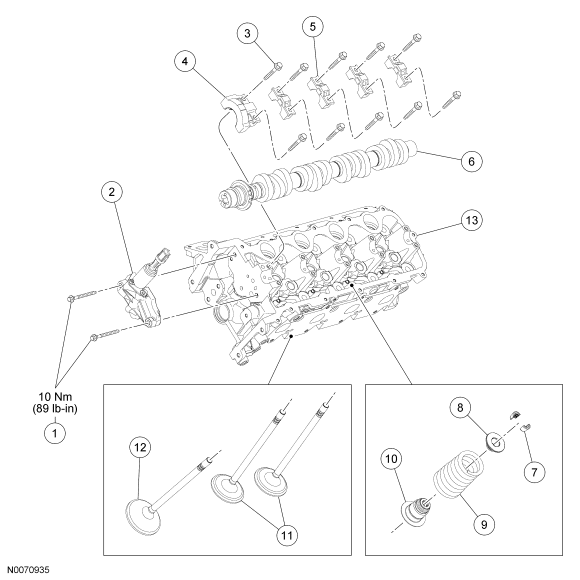

Fig 1: Exploded View Of Cylinder Head With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701520	Variable camshaft timing (VCT) housing assembly bolts (2 required)
2	6C261 LH/ 6C260 RH	VCT housing assembly
3	N807834	Camshaft bearing cap bolt (10 required)
4	6B284	Camshaft front bearing cap
5	6B280	Camshaft bearing cap (4 required)
6	6C255 LH/ 6251 RH	Camshaft
7	6518	Valve spring retainer key (24 required)
8	6514	Valve spring retainer (12 required)
9	6513	Valve spring (12 required)
10	6A517	Valve seal (12 required)
11	6507	Intake valves (8 required)
12	6505	Exhaust valve (4 required)
13	6050 LH/ 6049 RH	Cylinder head
