Timing Drive Components - Hydraulic Chain Tensioner, RH: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

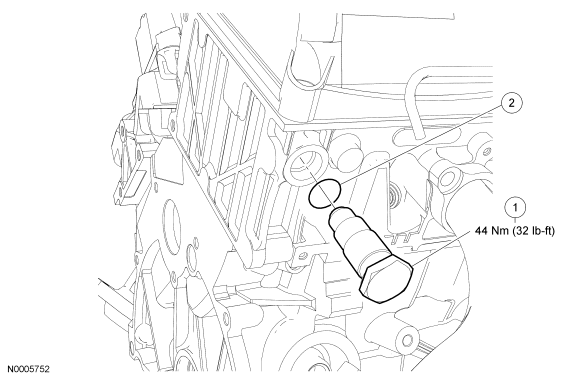

Fig 1: Exploded View Of RH Hydraulic Timing Chain Tensioner With Torque Specification
GF0000258Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6K254 RH hydraulic chain tensioner
2 6M252 RH hydraulic chain tensioner washer
