Timing Drive Components - Camshaft Drive Cassette, LH: Removal

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the fuel system pressure. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the intake manifold. For additional information, refer to Intake Manifold .
  4. Remove the engine front cover. For additional information, refer to Engine Front Cover .
  5. Remove all of the roller followers. For additional information, refer to Camshaft Roller Follower .
    6. NOTE: The LH and RH camshafts must be retimed when either camshaft is disturbed.
  6. Turn the crankshaft clockwise to position the No. 1 cylinder at Top Dead Center (TDC).
  7. Remove the LH hydraulic chain tensioner.
    • Remove and discard the washer.
  8. Remove the LH camshaft sprocket bolt.
    • Install the Camshaft Sprocket Holding Tool and Adapter and tighten to 10 Nm (89 lb-in).
    • Remove the LH camshaft sprocket bolt.

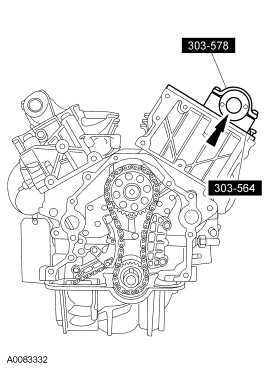

    9. Fig 1: Identifying Special Tool (303-578, 303-564) & Camshaft Sprocket Bolt
    GF0009337Courtesy of FORD MOTOR CO.
  9. Using the Crankshaft Holding Tool, prevent the crankshaft from turning, remove the jackshaft sprocket bolt.
    10. Fig 2: Removing Jackshaft Sprocket Bolt
    GF0000254Courtesy of FORD MOTOR CO.
  10. Remove the 2 bolts and the primary chain tensioner.
    11. Fig 3: Locating Chain Tensioner & Bolts
    GF0000255Courtesy of FORD MOTOR CO.
  11. Remove the primary chain and sprockets as an assembly.
    12. Fig 4: Locating Jackshaft Chain And Sprockets
    G03914213Courtesy of FORD MOTOR CO.
  12. Remove the suction hose bracket bolt.
  13. Remove the Power Steering Pressure (PSP) tube bracket nut.
  14. Remove the 3 bolts and the power steering pump pulley.
  15. Remove the 3 bolts and position the power steering pump aside.
  16. Remove the LH cassette upper bolt.
    17. Fig 5: Locating Chain Guide Bolt
    GF0000256Courtesy of FORD MOTOR CO.
  17. Remove the LH cassette lower bolt and the LH cassette.
    18. Fig 6: Locating Front Cassette & Bolt
    GF0000257Courtesy of FORD MOTOR CO.
