Valve Cover - RH: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |

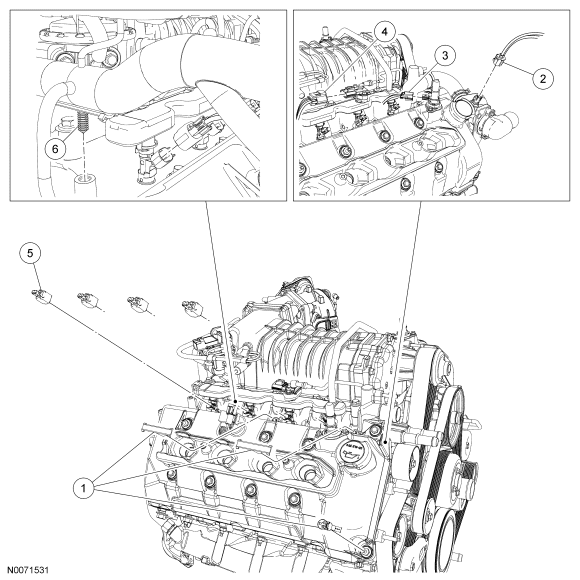

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiring harness retainers (3 required) (part of 12B637) |
| 2 | 14A464 | Engine Coolant Temperature (ECT) sensor electrical connector (part of 12B637) |
| 3 | 14A464 | PCV valve electrical connector (part of 12B637) |
| 4 | 14A464 | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 5 | 14A464 | RH fuel injector electrical connector (4 required) (part of 12B637) |
| 6 | - | Wiring harness retainer (part of 12B637) |

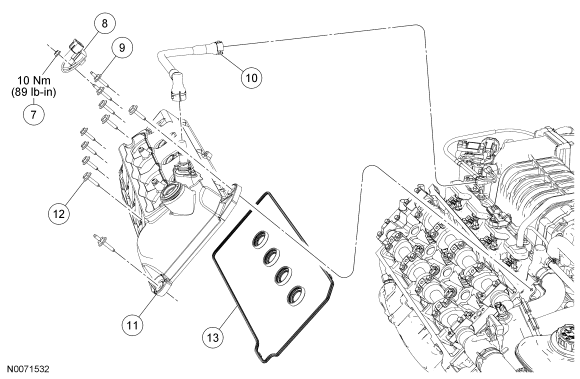

| Item | Part Number | Description |
|---|---|---|
| 7 | W520111 | RH radio interference capacitor nut |
| 8 | 18801 | RH radio interference capacitor |
| 9 | W708442 | RH valve cover stud bolt (3 required) |
| 10 | 64817 | Crankcase ventilation hose |
| 11 | 6582 | RH valve cover assembly |
| 12 | W708441 | RH valve cover bolt (7 required) |
| 13 | 6584 | RH valve cover gasket |
