Engine Support Insulators: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Lifting Bracket, Engine (2 required)	303-D087 (D93P-6001-A1) or equivalent
Courtesy of FORD MOTOR CO.	Support Bar, Engine	303-F070
Courtesy of FORD MOTOR CO.	Support Bar, Engine	303-F072

Material

Item	Specification
Motorcraft SAE 5W-50 Full Synthetic Motor Oil XO-5W50-QGT or equivalent	WSS-M2C931-B

Fig 1: Exploded View Of Engine Support Insulators With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W712530	RH engine support insulator nut
2	W707641	RH engine support insulator bolt (2 required)
3	6038	RH engine support insulator

Fig 2: Exploded View Of Engine Support Insulators With Torque Specifications (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
4	W702600	Intermediate steering shaft bolt
5	3C662	Intermediate steering shaft
6	W707137	Dash boot nut (2 required)
7	W710565	LH engine support insulator bracket bolt (4 required)
8	6B033	LH engine support insulator bracket
9	6714	Engine oil filter

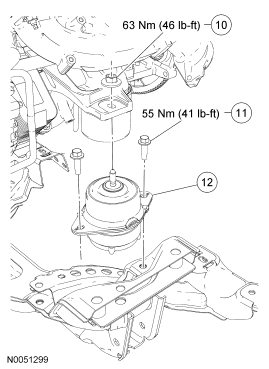

Fig 3: Exploded View Of Engine Support Insulators With Torque Specifications (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
10	W712530	LH engine support insulator nut
11	W707641	LH engine support insulator bolt (2 required)
12	6038	LH engine support insulator
