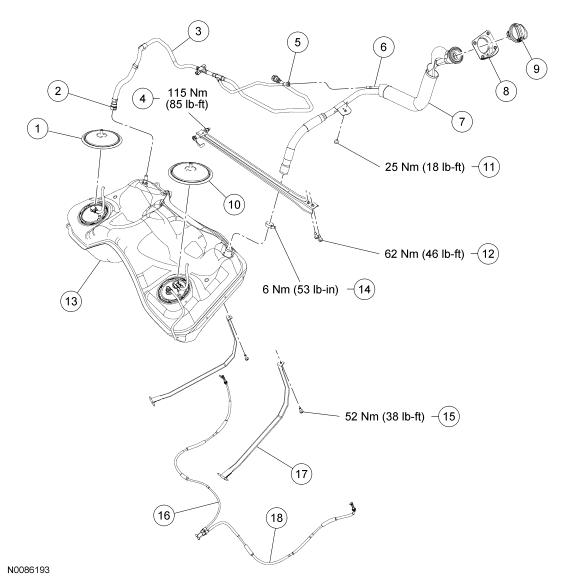

Fuel Tank and Filler Pipe - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
9C335 |
Fuel level sensor access cover |
| 2 |
- |
Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9E325) |
| 3 |
9E325 |
Fuel vapor tube assembly |
| 4 |
W520214 |
Lateral stiffener bar-to-body mount nut |
| 5 |
- |
Fuel vapor tube assembly-to-fuel tank filler pipe recirculation tube spring lock coupling (part of 9E325) |
| 6 |
- |
Fuel tank filler pipe recirculation tube (part of 9034) |
| 7 |
9034 |
Fuel tank filler pipe |
| 8 |
9A212 |
Fuel tank filler pipe upper retainer |
| 9 |
9030 |
Fuel tank filler cap |
| 10 |
9C335 |
Fuel Pump (FP) module access cover |
| 11 |
W713388 |
Fuel tank filler pipe bracket bolt |
| 12 |
W711331 |
Lateral stiffener bar-to-body bolt (2 required) |
| 13 |
9002 |
Fuel tank |
| 14 |
W525937 |
Fuel tank filler pipe hose clamp |
| 15 |
W710947 |
Fuel tank strap bolt (2 required) |
| 16 |
2A635 |
Rear parking brake cable (RH) |
| 17 |
9055 |
Fuel tank strap (2 required) |
| 18 |
2A823 |
Rear parking brake cable (LH) |

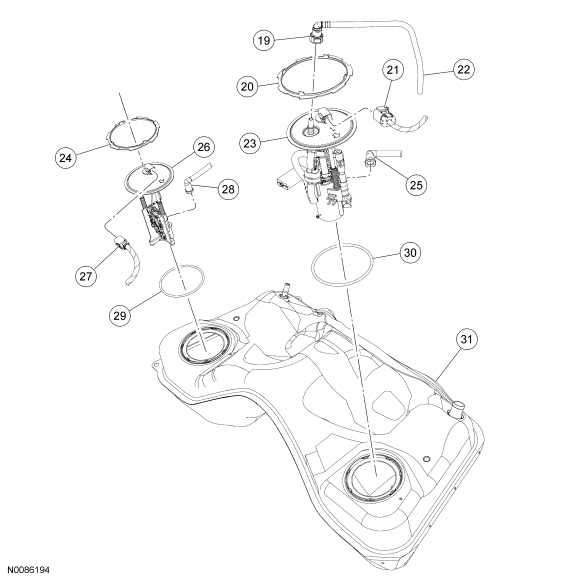

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 19 |
- |
Rear fuel tube-to-FP module quick connect coupling (part of 9J279) |
| 20 |
9C385 |
FP module lock ring |
| 21 |
14A464 |
FP module electrical connector |
| 22 |
9J279 |
Rear fuel tube |
| 23 |
9H307 |
FP module |
| 24 |
9C385 |
Fuel level sensor lock ring |
| 25 |
- |
Internal fuel tube-to-FP module quick connect coupling (part of 9002) |
| 26 |
9275 |
Fuel level sensor |
| 27 |
14A464 |
Fuel level sensor electrical connector |
| 28 |
- |
Internal fuel tube-to-fuel level sensor quick connect coupling (part of 9002) |
| 29 |
9E275 |
Fuel level sensor O-ring seal |
| 30 |
9E275 |
FP module O-ring seal |
| 31 |
9002 |
Fuel tank |
- For additional information, refer to the procedures.
