Extension Housing Seal: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Slide Hammer | 100-001 (T50T-100-A) | |
| Remover, Torque Converter Fluid Seal | 307-309 (T94P-77001-BH) | |
| Installer, Drive Pinion Oil Seal | 205-115 | |
| Installer, Drive Pinion Flange | 205-479 | |
| Installer, Output Shaft Flange | 307-404 | |
| Remover, Output Shaft Flange | 307-523 |

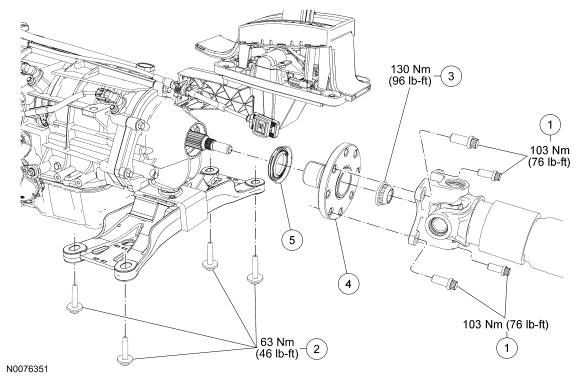

| Item | Part Number | Description |
|---|---|---|
| 1 | W701357 | Transmission output shaft flange coupler bolts (4 required) |
| 2 | W704971 | Transmission crossmember-to-floor pan screws |
| 3 | W701357 | Transmission output shaft flange nut |
| 4 | 7089 | Transmission output shaft flange |
| 5 | 7052 | Extension housing seal |
