Seat Backrest - Rear: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

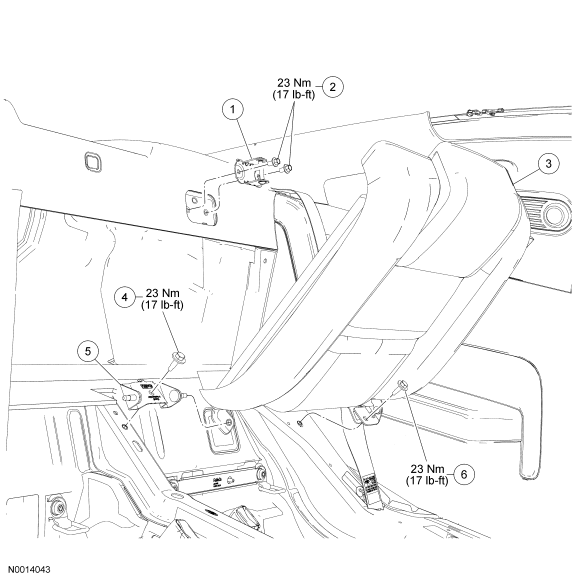

| Item |
Part Number |
Description |
| 1 |
62452 |
Backrest striker |
| 2 |
W505260 |
Backrest striker bolts |
| 3 |
- |
Backrest assembly |
| 4 |
W505433 |
Backrest pivot bracket bolt |
| 5 |
60615 |
Backrest pivot bracket |
| 6 |
W505433 |
Backrest-to-floor bolt |
Courtesy of FORD MOTOR CO.

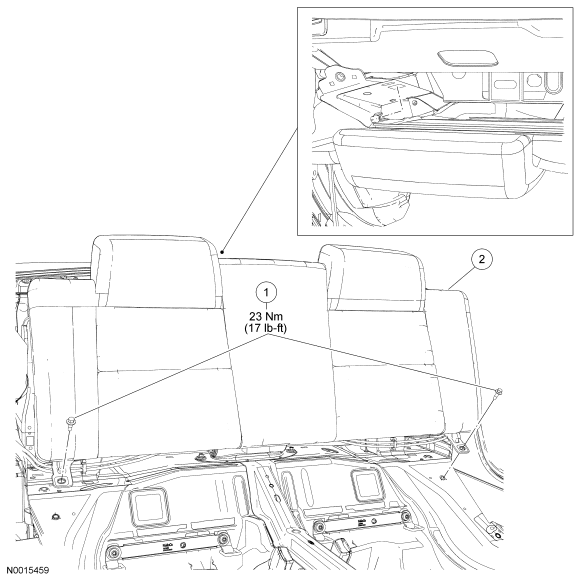

| Item |
Part Number |
Description |
| 1 |
W505433 |
Backrest-to-floor bolts |
| 2 |
- |
Backrest assembly |
