Coolant Pump - 4.0L SOHC: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |

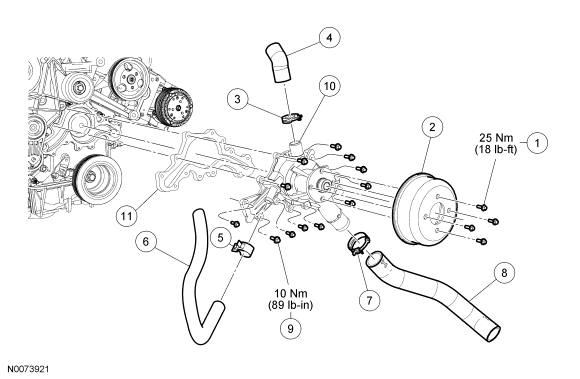

| Item | Part Number | Description |
|---|---|---|
| 1 | N807938 | Coolant pump pulley bolt (4 required) |
| 2 | 8509 | Coolant pump pulley |
| 3 | W525966 | Hose clamp |
| 4 | 8548 | Thermostat housing-to-coolant pump hose |
| 5 | 8287 | Hose clamp |
| 6 | 18C266 | Heater hose |
| 7 | 8287 | Hose clamp |
| 8 | 8286 | Radiator-to-coolant pump hose |
| 9 | 500014 | Coolant pump bolt (12 required) |
| 10 | 8501 | Coolant pump |
| 11 | 8507 | Coolant pump gasket |
