Coolant Crossover Manifold Assembly - 4.6L (3V): Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

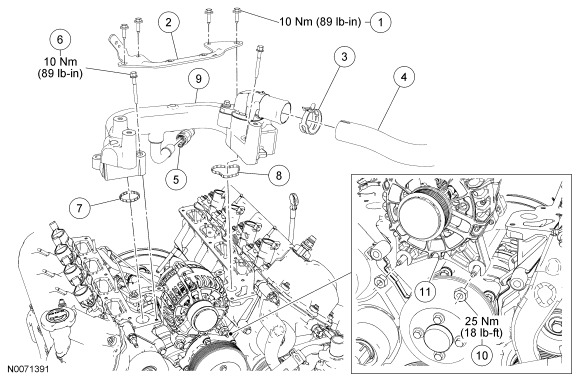

| Item | Part Number | Description |
|---|---|---|
| 1 | N807309 | Generator support bracket bolt (4 required) |
| 2 | 10153 | Generator support bracket |
| 3 | 15161 | Hose clamp |
| 4 | 8A594 | Coolant crossover assembly-to-radiator hose |
| 5 | 18B402 | Heater return and supply hose |
| 6 | W710925 | Coolant crossover assembly bolt (2 required) |
| 7 | 8C387 | Gasket |
| 8 | 8C388 | Gasket |
| 9 | 8C369 | Coolant crossover assembly |
| 10 | N804758 | Generator nut (2 required) |
| 11 | 10300 | Generator |
