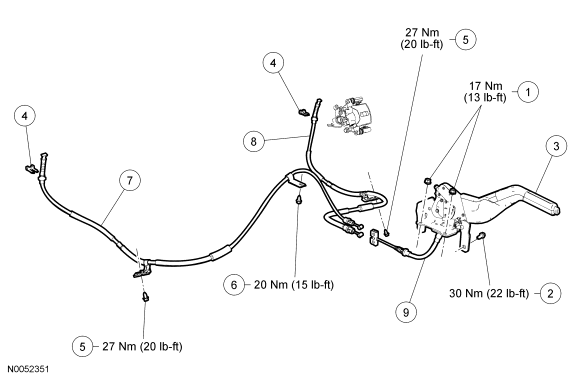

Parking Brake - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N804796 | Parking brake control nuts (2 required) |
| 2 | W704911 | Parking brake control bolt (2 required) |
| 3 | 2780 | Parking brake control |
| 4 | 2860 | Parking brake cable retaining clips (2 required) |
| 5 | W505263 | Parking brake cable bracket bolts |
| 6 | W704911 | Parking brake cable crossmember bracket bolt |
| 7 | 2A635 | Rear parking brake cable (RH) |
| 8 | 2A823 | Rear parking brake cable (LH) |
| 9 | - | Front parking brake cable (part of 2780) |
- For additional information, refer to the procedures in this article.
