Pinpoint Test JF: Integrated Ignition Coil On Plug Coils A Through J Failure: Introduction
This pinpoint test is intended to diagnose the following:
- ignition coils (12029)

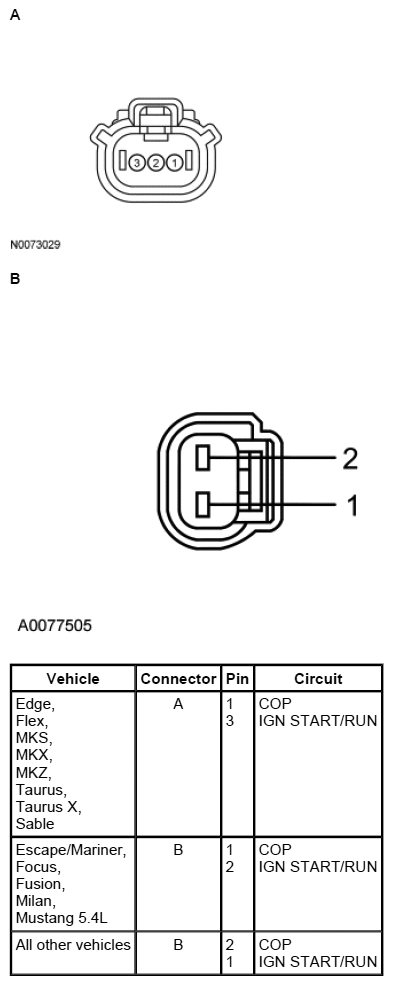

- ignition coil harness

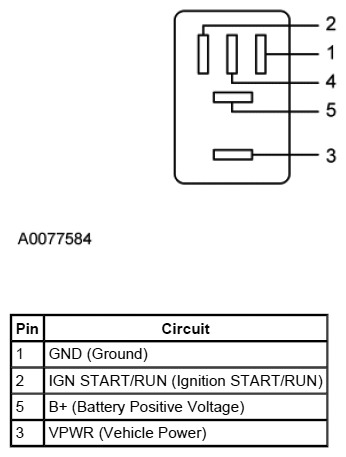

- ignition coils relay
- powertrain control module (PCM) (12A650)
IGNITION COIL TO CYLINDER CORRELATION
| Vehicle | Related DTC | Cylinder Number | Ignition Coil | Coil Driver (CD) | PCM Pin |
|---|---|---|---|---|---|
| 2.5L Escape, Mariner | P0351 | 1 | A | A | E54 |
| P0352 | 2 | B | D | E50 | |
| P0353 | 3 | C | B | E55 | |
| P0354 | 4 | D | C | E33 | |
| 2.0L Focus | P0351 | 1 | A | A | E70 |
| P0352 | 2 | B | D | E50 | |
| P0353 | 3 | C | B | E66 | |
| P0354 | 4 | D | C | E69 | |
| 2.3L Fusion, Milan | P0351 | 1 | A | A | E17 |
| P0352 | 2 | B | D | E11 | |
| P0353 | 3 | C | B | E12 | |
| P0354 | 4 | D | C | E16 | |
| 3.5L Edge, Flex, MKS, MKZ, Sable, Taurus, and Taurus X | P0351 | 1 | A | A | E17 |
| P0352 | 2 | B | C | E16 | |
| P0353 | 3 | C | E | E15 | |
| P0354 | 4 | D | B | E12 | |
| P0355 | 5 | E | D | E11 | |
| P0356 | 6 | F | F | E10 | |
| 3.0L Escape, Mariner | P0351 | 1 | A | A | E54 |
| P0352 | 2 | B | C | E56 | |
| P0353 | 3 | C | E | E50 | |
| P0354 | 4 | D | B | E55 | |
| P0355 | 5 | E | D | E33 | |
| P0356 | 6 | F | F | E66 | |
| 4.6L Crown Victoria, Explorer, Grand Marquis, Mountaineer, Mustang | P0351 | 1 | A | A | E17 |
| 5.4L F250 - F550, Mustang | P0352 | 2 | B | D | E11 |
| P0353 | 3 | C | B | E12 | |
| P0354 | 4 | D | G | E14 | |
| P0355 | 5 | E | F | E10 | |
| P0356 | 6 | F | E | E15 | |
| P0357 | 7 | G | C | E16 | |
| P0358 | 8 | H | H | E9 | |
| 4.6L E-Series, F-150 | P0351 | 1 | A | A | E54 |
| 5.4L E-Series, Expedition, F-150, Navigator | P0352 | 2 | B | D | E65 |
| P0353 | 3 | C | B | E55 | |
| P0354 | 4 | D | G | E33 | |
| P0355 | 5 | E | F | E50 | |
| P0356 | 6 | F | E | E66 | |
| P0357 | 7 | G | C | E56 | |
| P0358 | 8 | H | H | E17 | |
| 6.8L E350, E450, F250 - F550 | P0351 | 1 | A | A | E17 |
| P0352 | 2 | B | E | E11 | |
| P0353 | 3 | C | G | E12 | |
| P0354 | 4 | D | I | E14 | |
| P0355 | 5 | E | C | E10 | |
| P0356 | 6 | F | B | E15 | |
| P0357 | 7 | G | F | E16 | |
| P0358 | 8 | H | H | E9 | |
| P0359 | 9 | I | J | E13 | |
| P0360 | 10 | J | D | E8 |
