Right Rear Seat Cushion Heater Connector - C3169

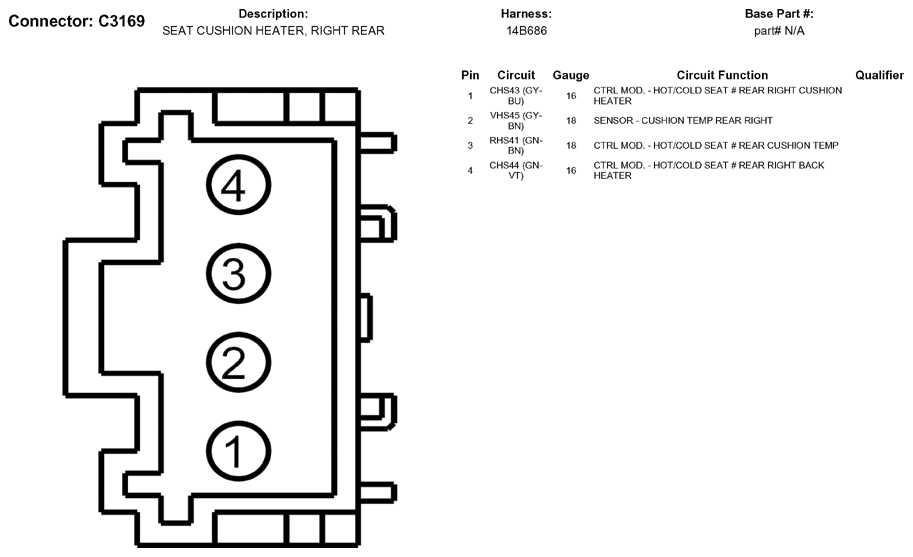

Fig 1: Right Rear Seat Cushion Heater Connector End View (C3169)

G05790161

Courtesy of FORD MOTOR CO.
