Variable Camshaft Timing Valve 1 Connector - C1451

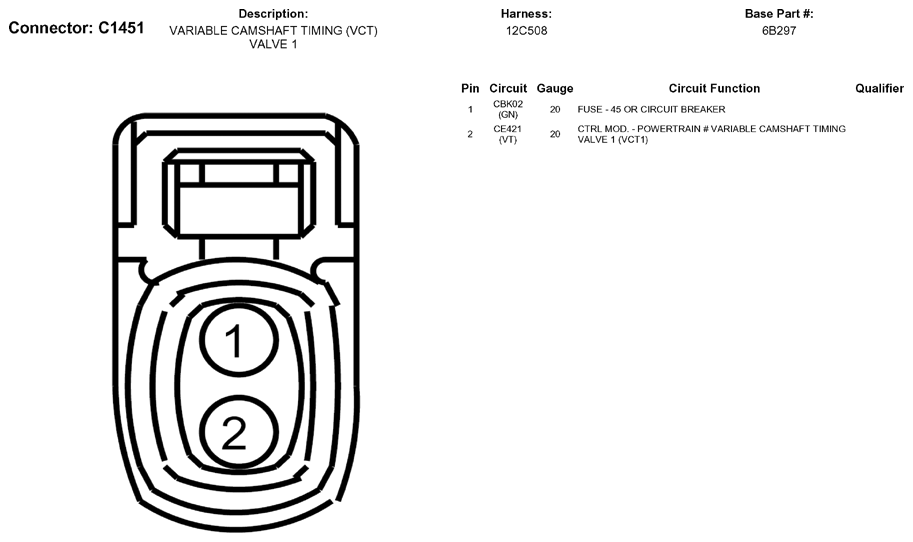

Fig 1: Variable Camshaft Timing Valve 1 Connector End View (C1451)
G05790106Courtesy of FORD MOTOR CO.
