Right Rear Seat Heated Seat Switch Connector - C3341

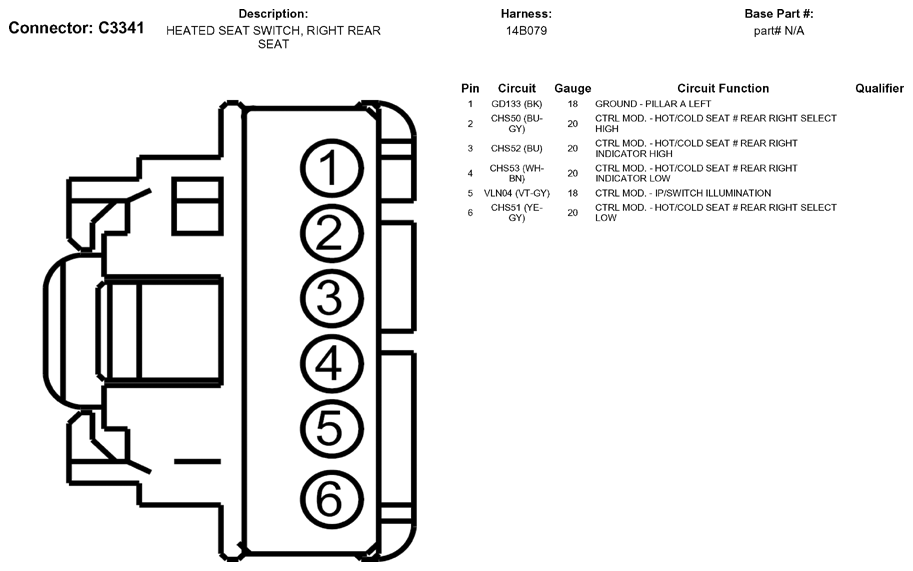

Fig 1: Right Rear Seat Heated Seat Switch Connector End View (C3341)

G05790188

Courtesy of FORD MOTOR CO.
