6F Automatic Transmission Vehicle Harness Connector - C168

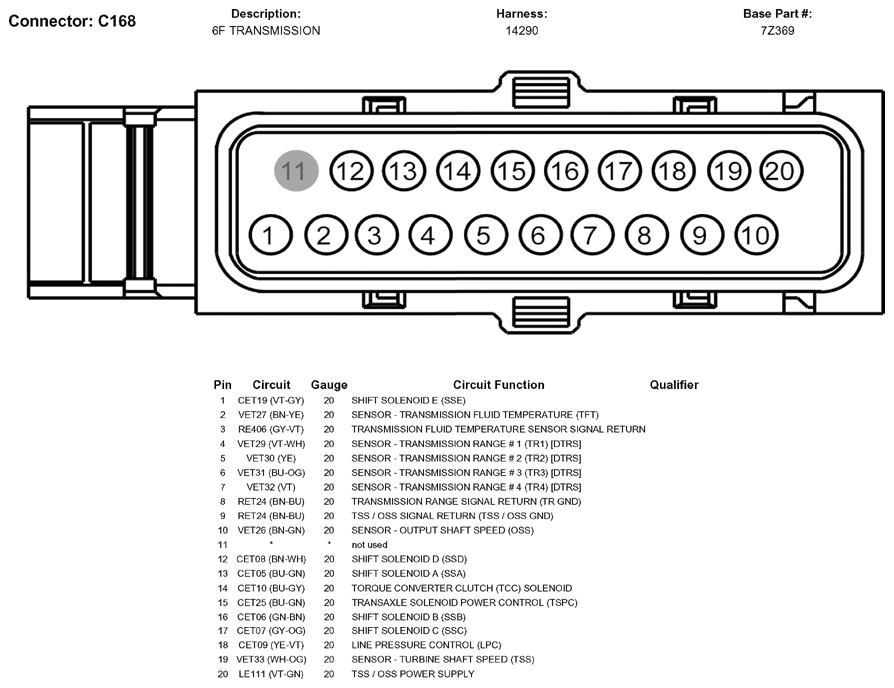

Fig 1: 6F Automatic Transmission Vehicle Harness Connector End View (C168)

G05789927

Courtesy of FORD MOTOR CO.
