Seat Position Sensor: Service and Repair

Seat Position Sensor

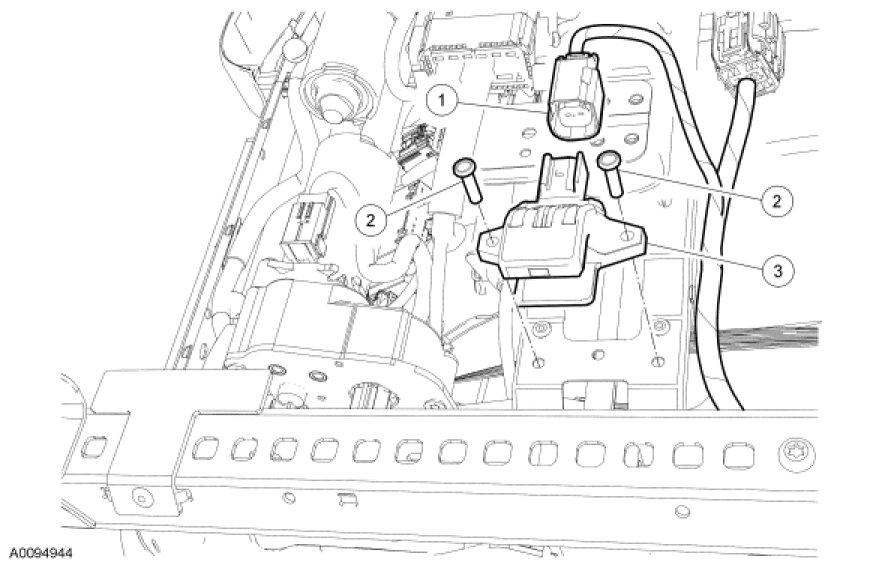

NOTE: LH shown, RH similar.

NOTE: Power seat shown, manual seat similar.










NOTE: The air bag warning indicator illuminates when the correct RCM fuse is removed and the ignition switch is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

1. Remove the seat.

2. Disconnect the seat position sensor electrical connector.

3. Drill out the 2 seat position sensor rivets.

4. Remove the seat position sensor.

5. To install, reverse the removal procedure.

6. Install the seat.
