Connecting Rod-to-Piston Clearance




Connecting Rod-to-Piston Clearance





NOTE: Refer to the Engine system level for the specification.

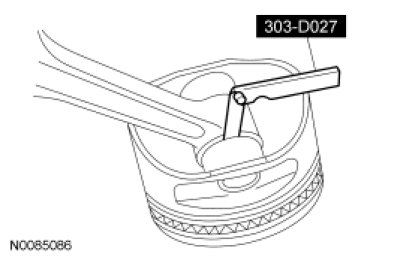

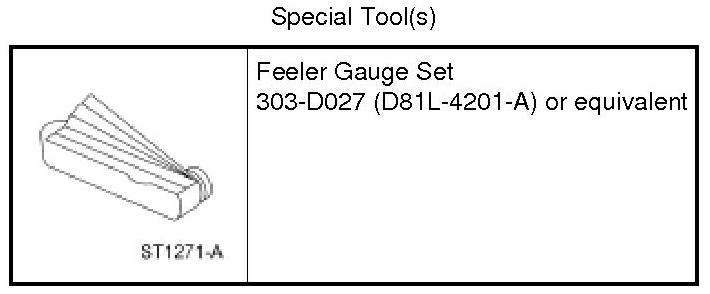

1. Using the Feeler Gauge Set, measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
