Inertia Fuel Shutoff Switch: Service and Repair

Inertia Fuel Shutoff (IFS) Switch









Removal and Installation

1. Remove the RH cowl side trim panel.

2. Disconnect the Inertia Fuel Shutoff (IFS) switch electrical connector.

3. NOTICE: Do not overtighten the fasteners or damage to the switch will occur.

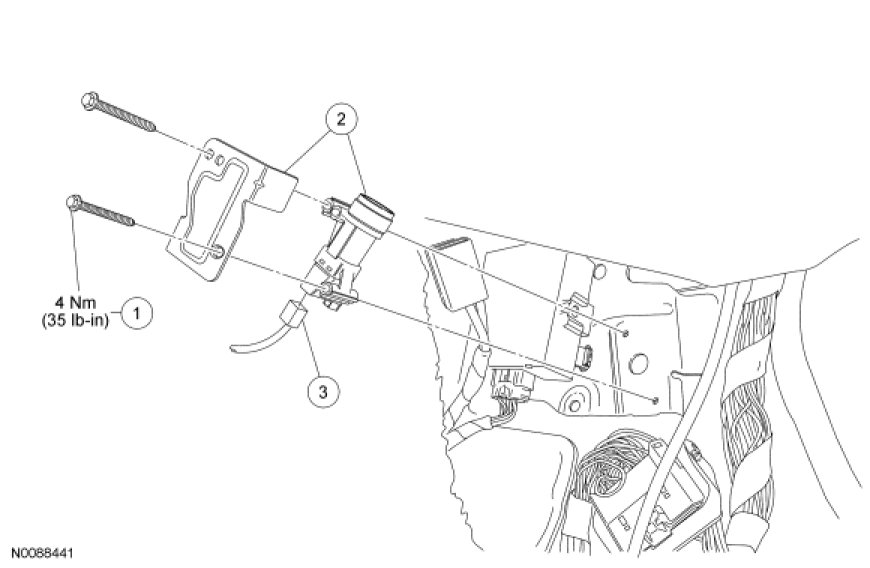

Remove the 2 bolts and the IFS switch and bracket assembly.

- To install, tighten to 4 Nm (35 lb-in).

4. To install, reverse the removal procedure.
