Camshaft Bearing: Specifications

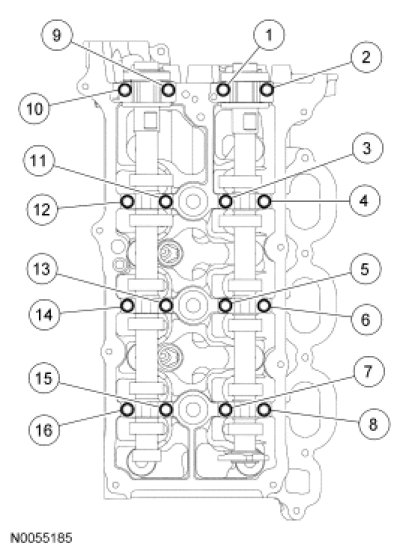

RHInstall the 8 camshaft caps and the 16 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).

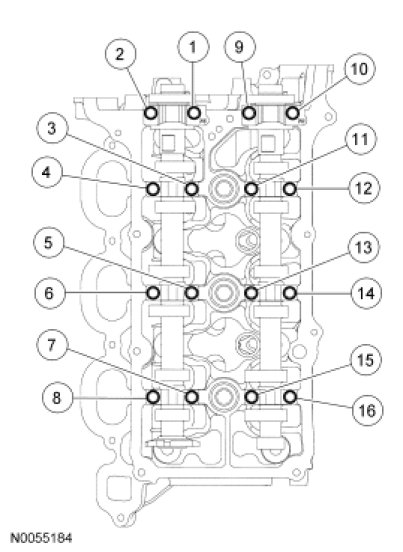

LH
Install the 8 camshaft caps and the 16 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).
Install the 8 camshaft caps and the 16 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).
LH
Install the 8 camshaft caps and the 16 bolts.
Tighten in the sequence shown to 10 Nm (89 lb-in).
