Power Door Lock Actuator: Service and Repair

Door Lock Actuator

Removal and Installation

1. Remove the door latch. For additional information, refer to Front Door Latch Front Door Latch or Rear Door Latch Rear Door Latch.

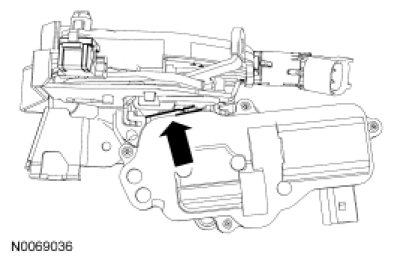

2. Release the tab on the door lock actuator and slide it off the door latch.





3. To install, reverse the removal procedure.
