Antenna Lead-In Cable

Antenna Lead-In Cable









Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) Audio Control Module (ACM).

2. Remove the RH cowl side trim panel.

3. Lower the glove compartment door.

1. Disconnect the glove compartment door tension rod.

2. Pull the tabs inward.

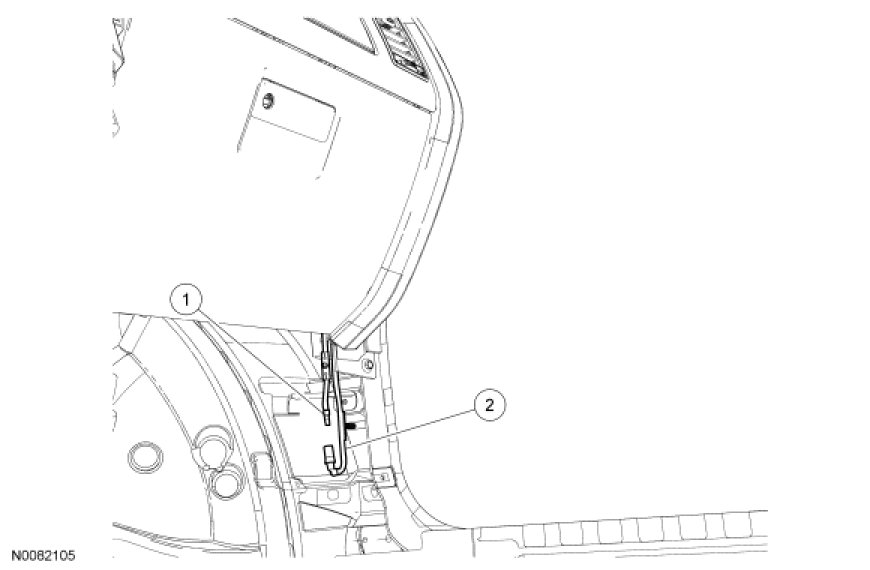

4. Disconnect the antenna lead-in cable from the AM/FM antenna cable.

5. Remove the antenna lead-in cable.
- Release the pin-type retainers.

6. To install, reverse the removal procedure.
