Flywheel Runout Check




Flywheel Runout Check

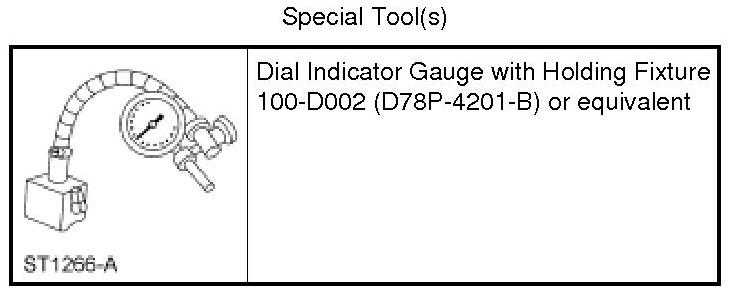

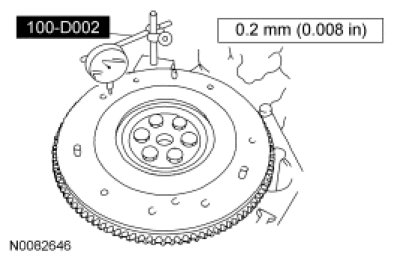

1. Mount the Dial Indicator Gauge with Holding Fixture so that the indicator contact point rides on the clutch disc contact surface.

2. Turn the flywheel. If the runout exceeds the maximum allowance, install a new flywheel.
