Oil Pressure Sender: Service and Repair

Engine Oil Pressure (EOP) Switch













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

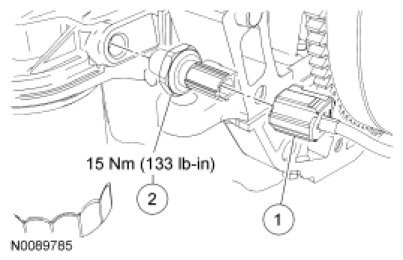

2. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

3. Remove the EOP switch.
- To install, tighten to 15 Nm (133 lb-in).

4. NOTE: Apply thread sealant with PTFE to the sender threads.

To install, reverse the removal procedure.
