Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear













Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

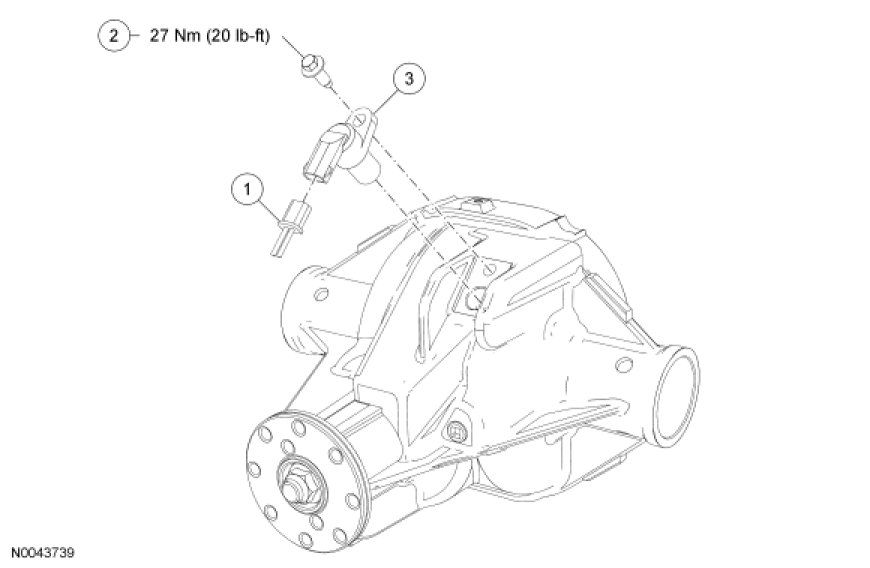

2. Disconnect the wheel speed sensor electrical connector.

3. Remove the wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten to 27 Nm (20 lb-ft).

4. NOTE: Plug the sensor cavity and thoroughly clean the sensor mounting surface.

NOTE: Inspect the anti-lock brake sensor O-ring seal for damage; lightly lubricate the O-ring seal with the specified lubricant.

To install, reverse the removal procedure.
