Wheel Speed Sensor - Front, Rear Wheel Drive (RWD)

Wheel Speed Sensor - Front, Rear Wheel Drive (RWD)

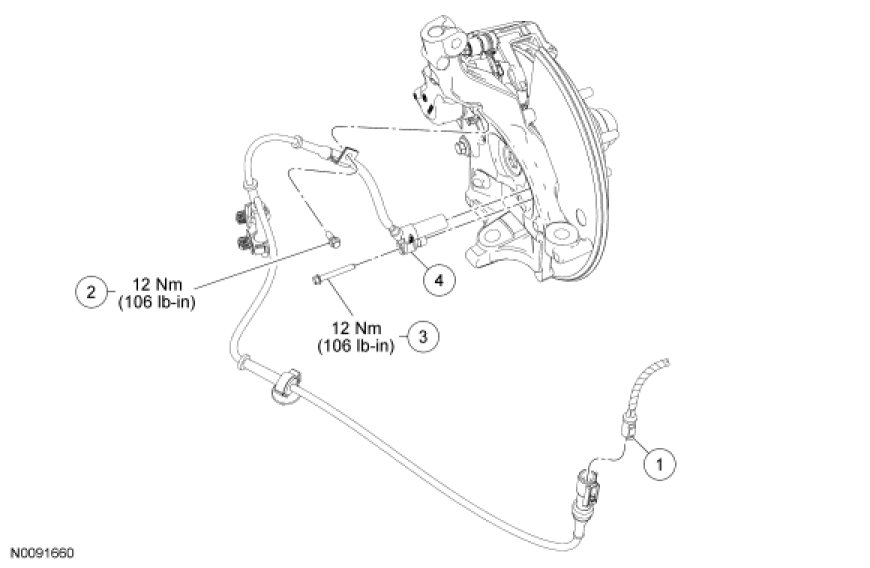

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the wheel speed sensor electrical connector.

3. Remove the wheel speed sensor harness bolt and unclip the retainers.
- To install, tighten to 12 Nm (106 lb-in).

4. Remove the wheel speed sensor bolt and the wheel speed sensor.
- To install, tighten to 12 Nm (106 lb-in).

5. NOTE: Plug the sensor cavity and thoroughly clean the sensor mounting surface. Apply a light coating of the specified grease to the mounting surface.

To install, reverse the removal procedure.
