Inertia Fuel Shutoff Switch: Service and Repair

Inertia Fuel Shutoff (IFS) Switch

Removal and Installation









1. NOTE: The Inertia Fuel Shutoff (IFS) switch is located behind the RH cowl panel.

Remove the RH scuff plate and cowl panel.

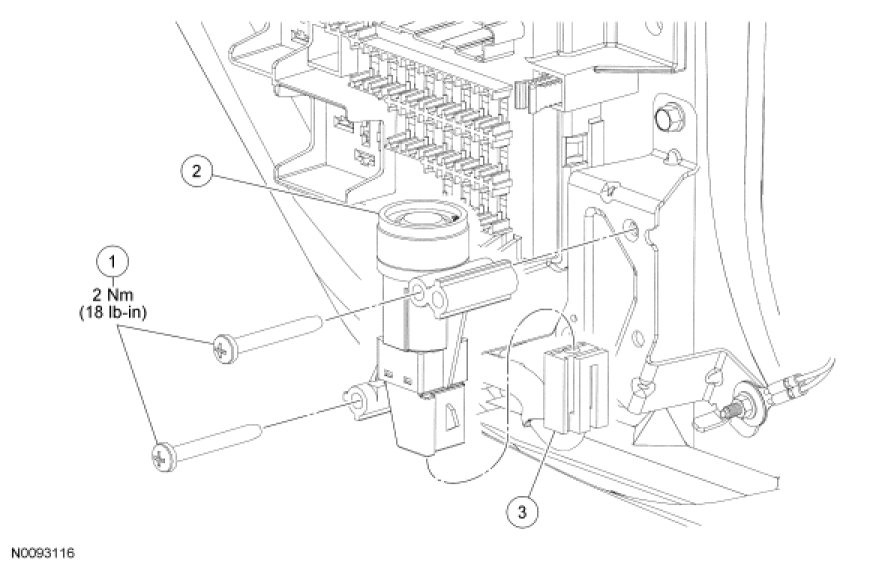

2. Remove the 2 screws and the IFS switch.
- To install, tighten to 2 Nm (18 lb-in).

3. Disconnect the IFS switch electrical connector.

4. To install, reverse the removal procedure.
