Camshaft Bearing: Specifications

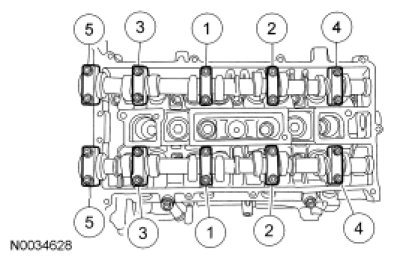

Position the camshafts and bearing caps in their original location and orientation. Loosely install the 20 bolts and tighten the bearing caps in the sequence shown in 3 stages:
Stage 1: Tighten the camshaft bearing cap bolts one turn at a time until snug.
Stage 2: Tighten the bolts to 7 Nm (62 lb-in).
Stage 3: Tighten the bolts to 16 Nm (142 lb-in).
