Door Speaker




Door Speaker

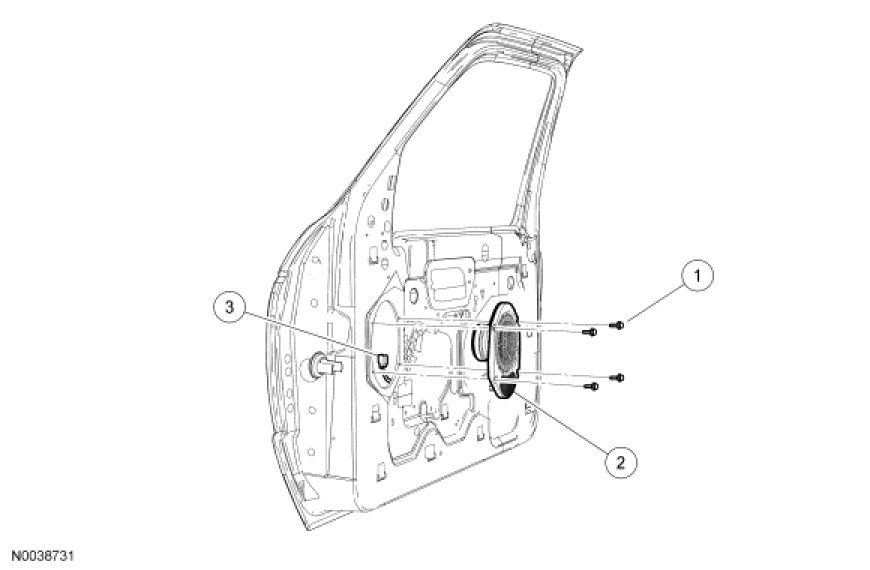

NOTE: RH front shown, others similar.

NOTE: The Audiophile system uses 2-voice (speaker with tweeter) speakers that are not interchangeable with any other audio system.










Removal and Installation

1. Remove the door trim panel.

2. Remove the 4 screws and the door speaker.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
