Antenna Cable - Satellite Radio

Antenna Cable - Satellite Radio

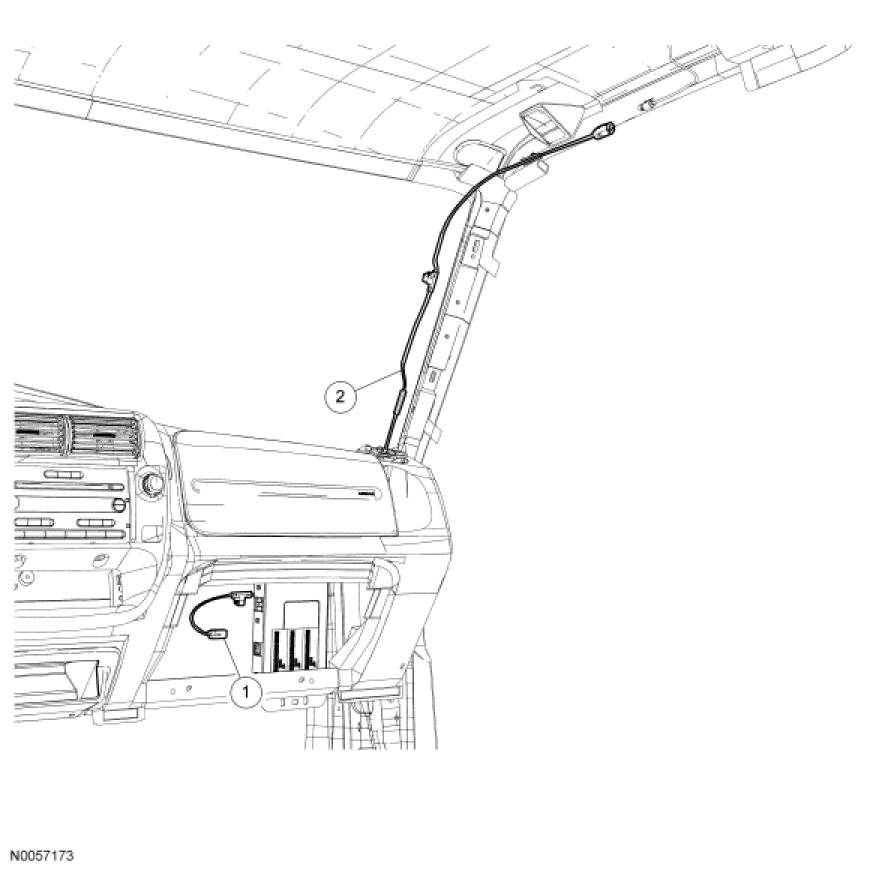

Removal and Installation

1. Remove the satellite radio antenna. For additional information, refer to Antenna - Satellite Radio Antenna - Satellite Radio.

2. Press the tabs and lower the glove compartment completely.

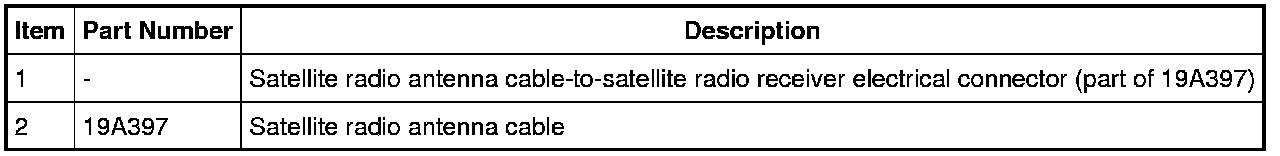

3. Disconnect the satellite radio antenna cable-to-satellite radio receiver electrical connector.

4. NOTE: For ease of installation, the new satellite radio antenna should be tied to the existing cable and pulled through the side of the instrument panel.

Remove the satellite radio antenna cable.

5. To install, reverse the removal procedure.
