Solenoid Body Assembly: Installation

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new solenoid body gasket.
    2. Fig 1: View Of Solenoid Body Gasket
    G03889054Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the solenoid body and loosely install the bolts.
    • While installing the solenoid body, align the manual valve.

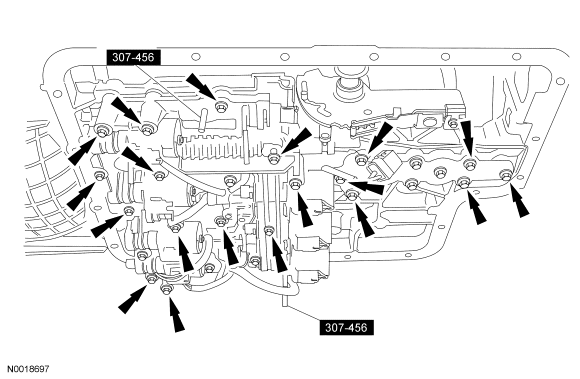

    3. Fig 2: Locating Solenoid Body Bolts
    GF0006795Courtesy of FORD MOTOR CO.
  3. Tighten all the bolts in the sequence shown.
    • Tighten to 13 Nm (10 lb-ft).

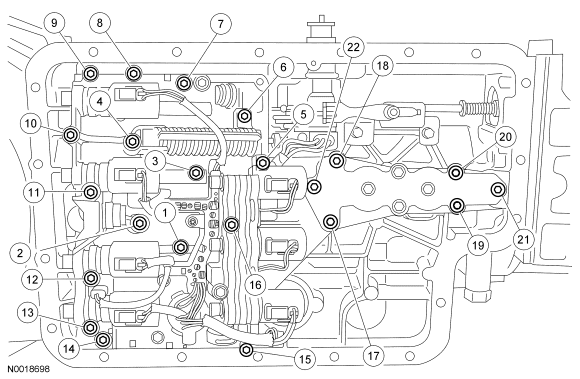

    4. Fig 3: Identifying Solenoid Body Bolts
    GF0006796Courtesy of FORD MOTOR CO.
  4. Connect the TR position sensor connector.
    5. Fig 4: Identifying TR Sensor Connector
    GF0006797Courtesy of FORD MOTOR CO.
  5. Install the transmission fluid filter, pan gasket and pan. For additional information, refer to Fluid Pan, Gasket and Filter  in this article.
  6. Connect the solenoid body electrical connector.
    • Tighten to 5 Nm (44 lb-in).
    7. Fig 5: Identifying Solenoid Body Electrical Connector
    G03889052Courtesy of FORD MOTOR CO.
