Instrument Panel Dimmer Switch: Notes

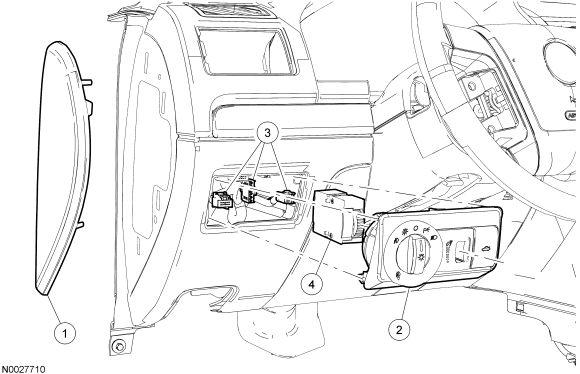

Fig 1: Exploded View Of Instrument Panel Dimmer Switch
GF0030368Courtesy of FORD MOTOR CO.
Item Part Number Description
1 5404481 Instrument panel side finish panel
2 14K147 Headlamp switch assembly
3 - Headlamp switch assembly electrical connectors (part of 14401)
4 11691 Instrument panel dimmer switch
