Home >> Ford >> 2009 >> Fusion FWD L4-2.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Occupant Sensor >> Diagrams >> Occupant Classification Sensor (OCS) 4

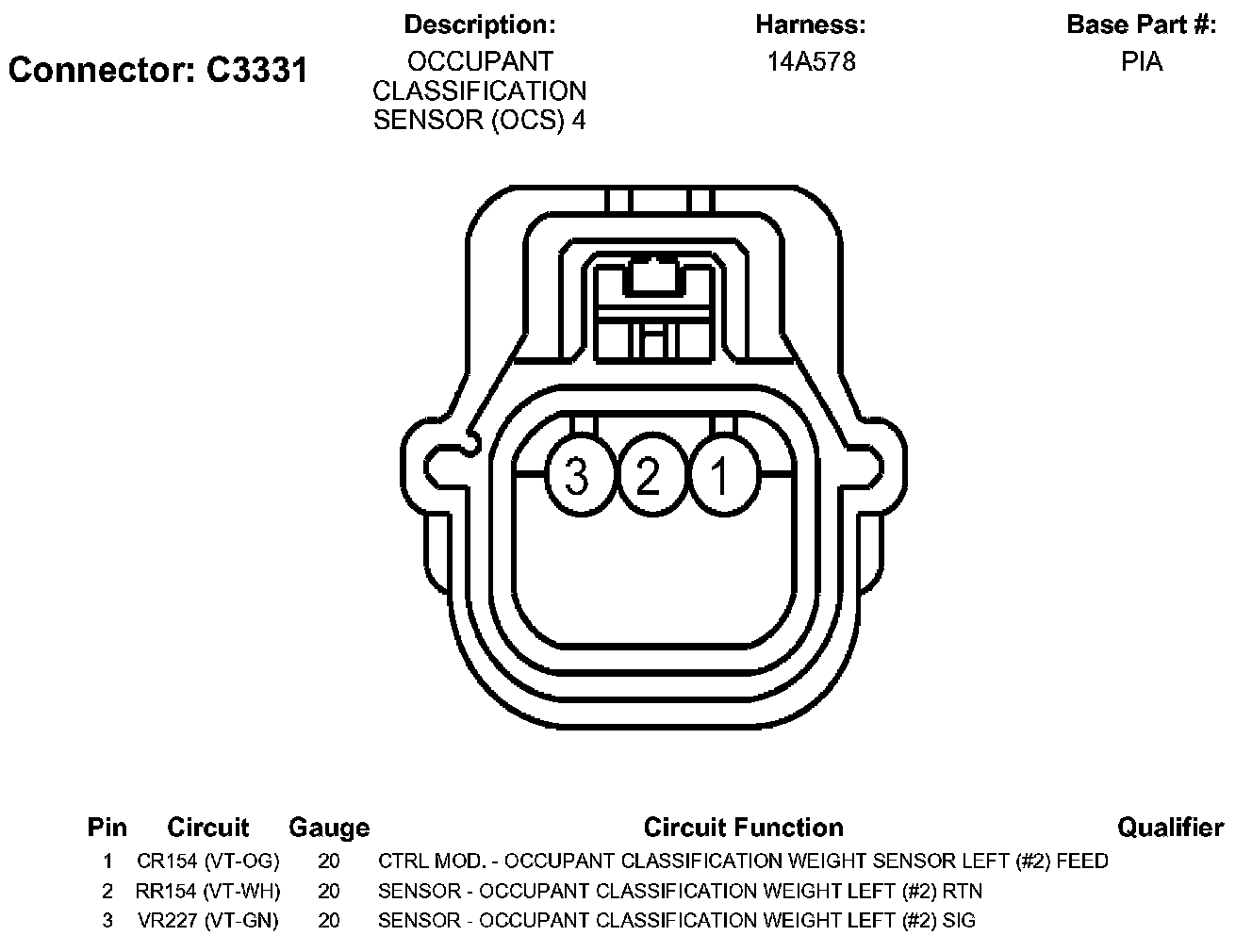

Occupant Classification Sensor (OCS) 4
