Sunroof / Moonroof Switch: Service and Repair

Roof Opening Panel Control Switch









Removal and Installation

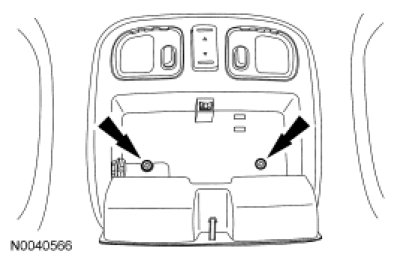

1. Open the storage compartment cover and remove the 2 screws.

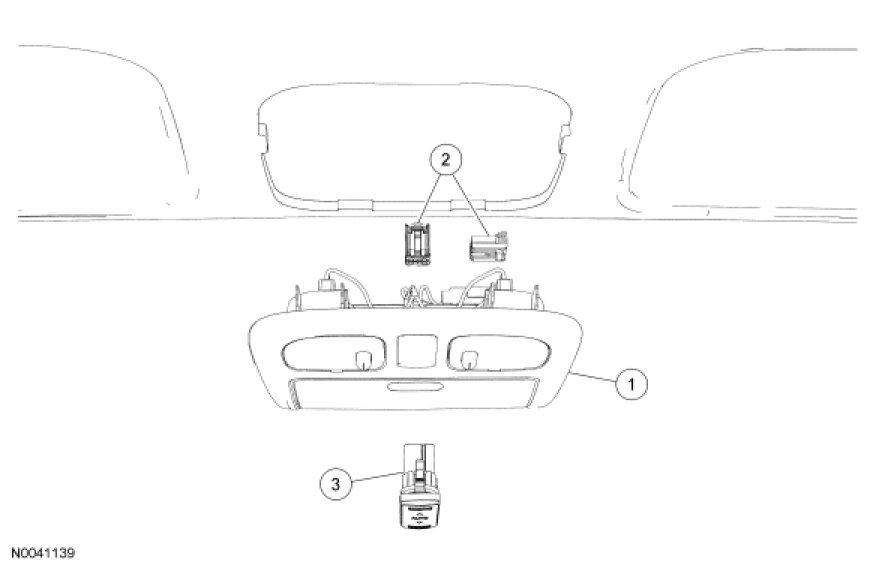

2. Disconnect the overhead console electrical connectors.

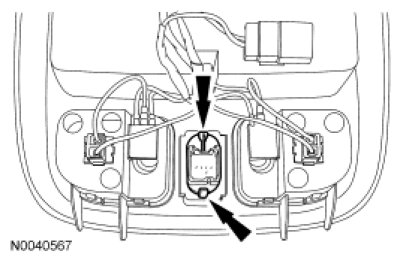

3. Disengage the clips and remove the switch from the overhead console.





4. To install, reverse the removal procedure.
