Inertia Fuel Shutoff Switch: Service and Repair

Inertia Fuel Shutoff (IFS) Switch

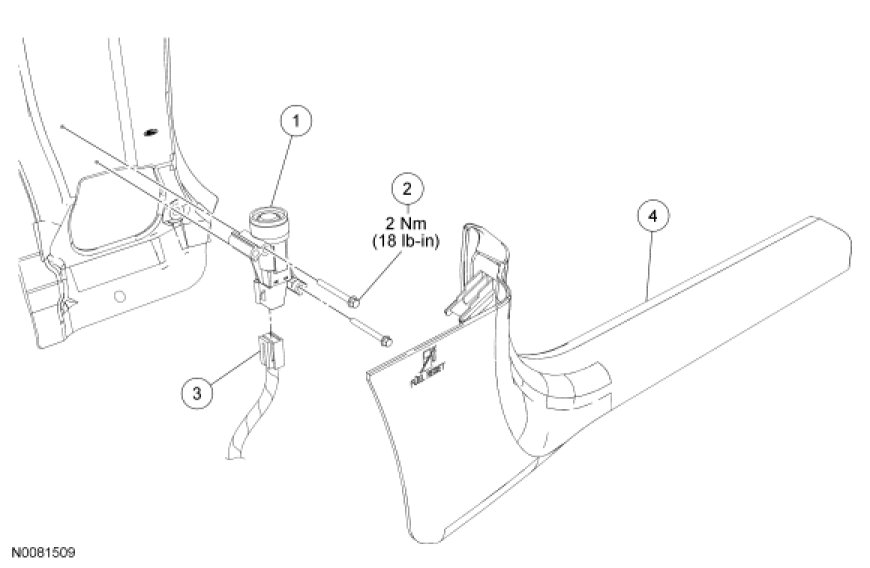

Removal and Installation

1. Remove the RH front door scuff plate.

2. Disconnect the Inertia Fuel Shutoff (IFS) switch electrical connector.

3. NOTICE: Do not overtighten the fasteners or damage to the switch will occur.

Remove the 2 bolts and the IFS switch.

- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
