Headlamp Switch: Service and Repair

Headlamp Switch









Removal and Installation

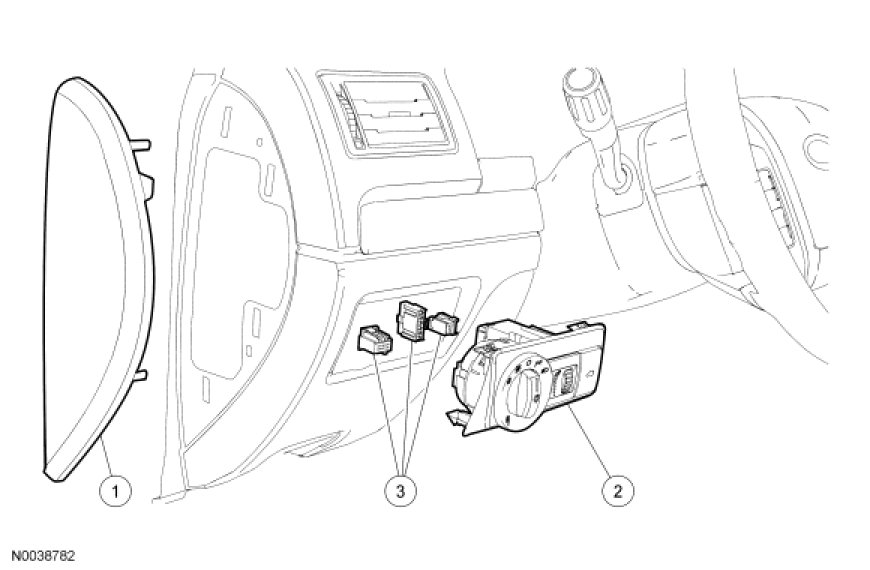

1. Remove the instrument panel side finish panel.

2. NOTE: The headlamp switch is removed by pushing from behind.

Release the tabs and remove the headlamp switch.

- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
