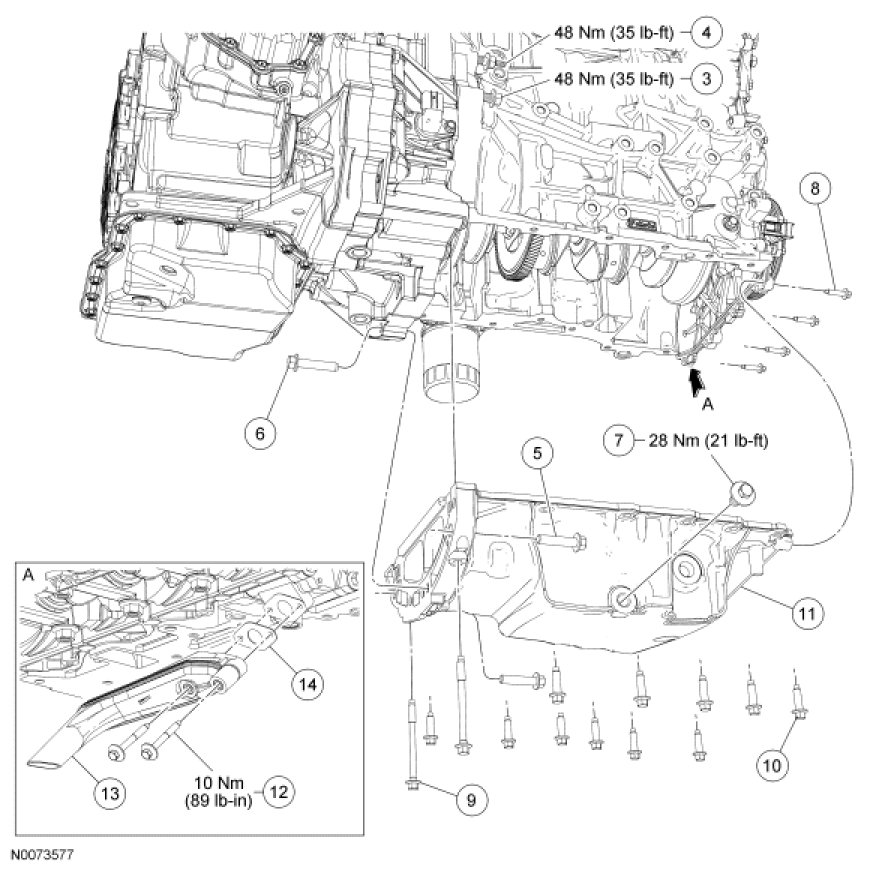

Oil Pan, Oil Pump Screen and Pickup Tube - Exploded View

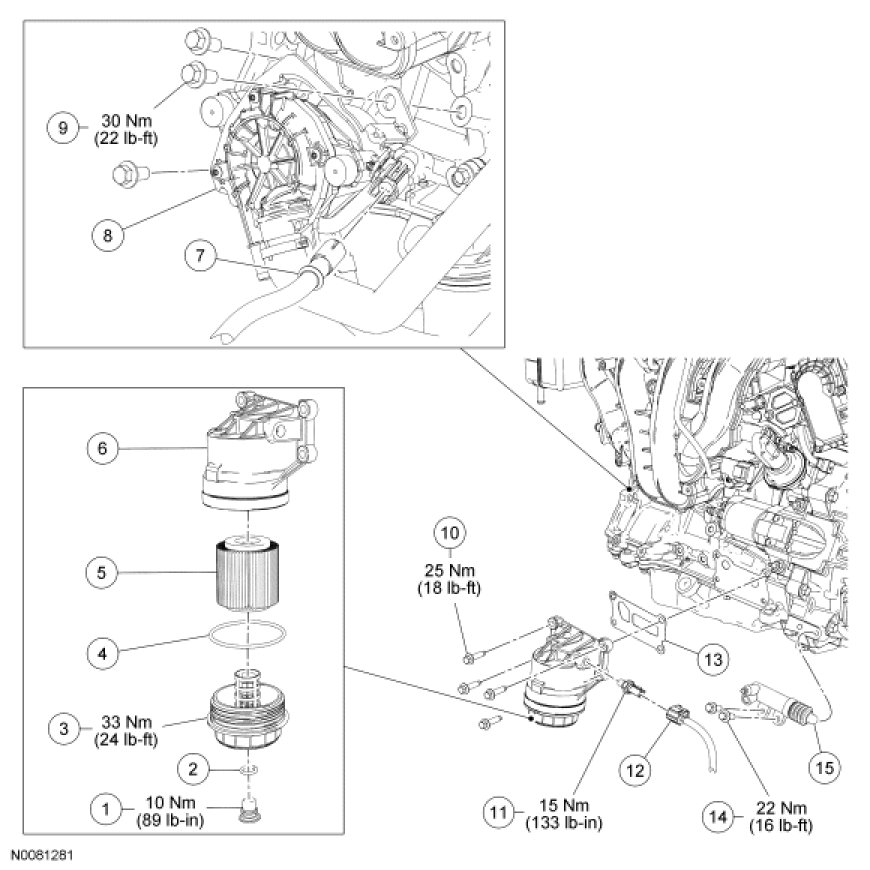

Engine Lubrication Components - Exploded View



Oil Filter Element, Oil Filter Adapter and Oil Pressure Sender

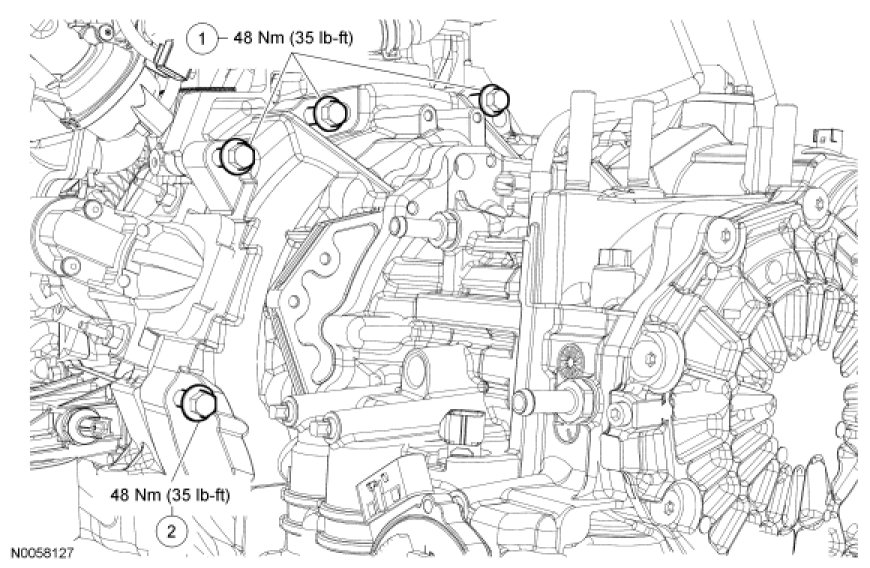

Transmission Bolts for Oil Pan Removal

NOTE: Automatic transmission shown, manual transmission similar.












Oil Pan, Oil Pump Screen and Pickup Tube











Oil Pump









1. For additional information, refer to the procedures.
