Arm/Disarm Switch: Service and Repair




Anti-Theft - Perimeter

Anti-Theft Inhibit Switch - Luggage Compartment









Removal and Installation

1. Remove the luggage compartment lid lock cylinder.

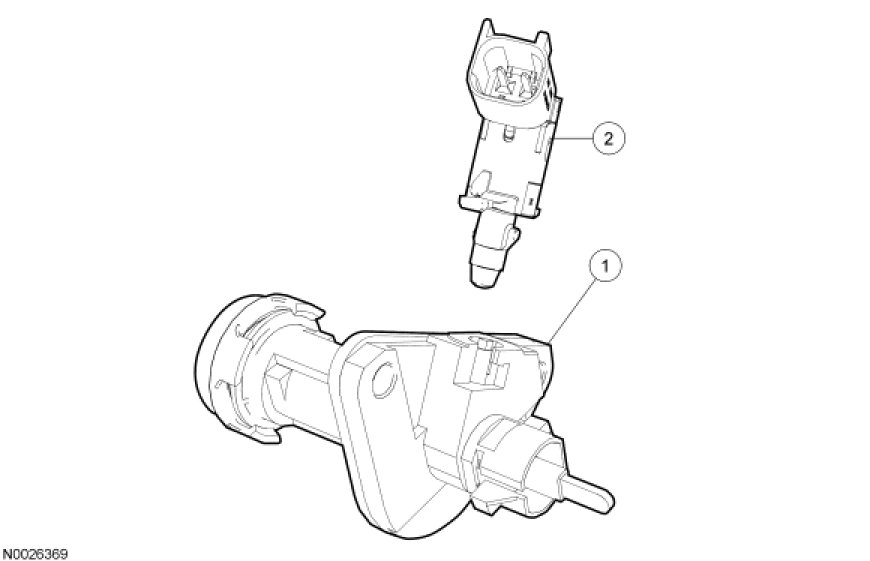

2. Lift the retaining tabs, turn the switch clockwise and remove the luggage compartment anti-theft inhibit switch.

3. To install, reverse the removal procedure.
